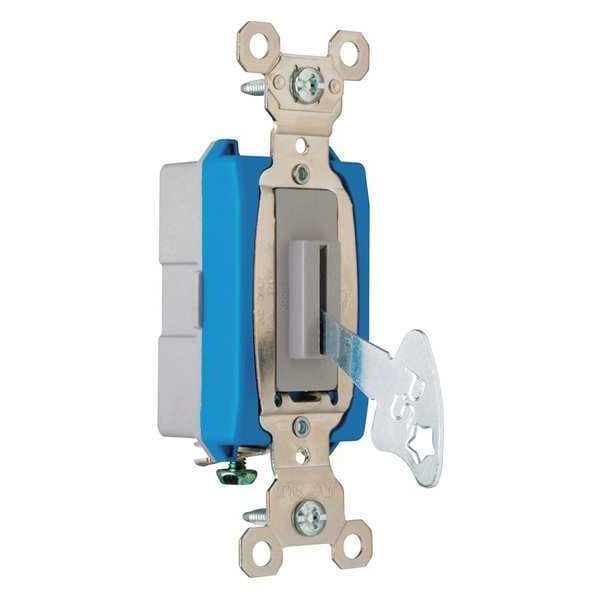

Legrand Wall Switch, 1-Pole Switch Type, 15A PS15AC1L - main

Wall Switch, 1-Pole Switch Type, 15A

  • Mfr # PS15AC1L

  • Zoro # G7766285

product price: $17.15
/ea

Key Features

Switch Type
Single Pole
Switch Style
Locking
Amps AC
15 A
Color
Gray
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PS15AC1L
Zoro #
G7766285
UPC #
785007195590
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Overall Width
1.3 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Switch Height
2.2 in
Switch Depth
1.1 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Locking
Amps AC
15 A
Color
Gray
Voltage AC
120 to 277
Locking
Yes
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Antimicrobial
No
Description/Special Features
Nylon Toggle
Standards
cULus Listed, UL 20, WD-1, WD-6
Voltage
120.0 V
Horsepower Rating
1/2 hp
Grounding
Grounded
Voltage Rating
120V AC
Housing Material
Thermoplastic
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-40 Degrees F
Locking Style
Straight Key
Current Rating
15 A
Wire Connection Types
Screw Terminals
Strap Material
Nickel-Plated Brass
Maximum Operating Temperature
115 Degrees C
For Market
Industrial Grade
Resistance Properties
Chemical Resistant, Corrosion Resistant, Heat Resistant, Impact Resistant
Market
Industrial
Contact Material
Silver Alloy
Switch Material
Thermoplastic
Features
Auto-Ground Clip Assures Positive Ground, Grounding Terminal is Standard with Screw-Pressure Plate Back Wire, Heavy-Duty Bumpers, Heavy-Duty, Brass Alloy, One-Piece Contact Arm
Application Sector
Residential/Commercial
Actuator
Toggle
Number Of Poles
Single Pole
Amperage
15.0 A
Standard
UL20
Special Features
Heavy duty switch, back & side wire, shallow design for ease of installation
Contact Rating
15Amp, 120/277V

Description

Wall Switch, Color Gray, Current Rating 15 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120V AC, Wiring Method Back, Side, Horsepower Rating 1/2 hp, Locking Style Straight Key, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Resistance Properties Chemical Resistant, Corrosion Resistant, Heat Resistant, Impact Resistant, Standards cULus Listed, UL 20, WD-1, WD-6, Strap Material Nickel-Plated Brass, Switch Style Locking
