  11. Wall Switch, 1-Pole Switch Type, 30A

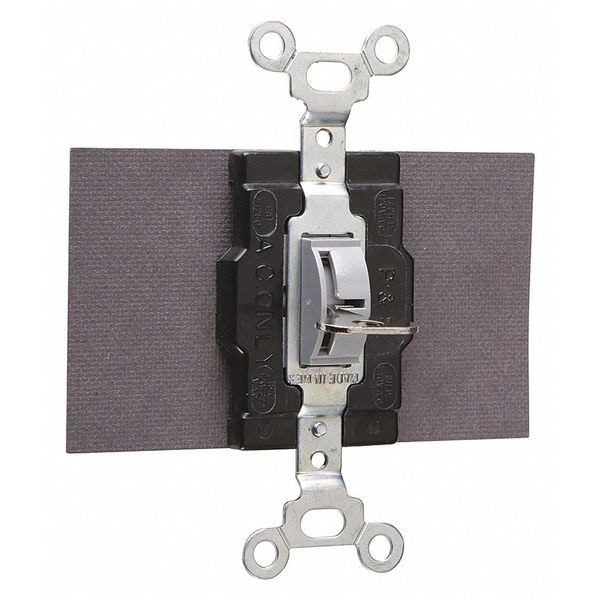

Legrand Wall Switch, 1-Pole Switch Type, 30A 1255L - main

Wall Switch, 1-Pole Switch Type, 30A

  • Mfr # 1255L

  • Zoro # G4421011

product price: $89.29
/ea
Free Shipping & Returns

Key Features

Switch Type
Single Pole/Double Throw
Switch Style
Locking
Amps AC
30 A
Color
Gray
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1255L
Zoro #
G4421011
UPC #
785007410709
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Wall Switch
Switch Type
Single Pole/Double Throw
Switch Style
Locking
Amps AC
30 A
Color
Gray
Voltage AC
120 to 277
Locking
Yes
Switch Function
Momentary
Wiring Method
Side
Application Environment
Industrial
Description/Special Features
Nylon Toggle
Antimicrobial
No
Ligature Resistant
Yes
Standards
CSA Certified 17949, UL Listed
Voltage
120.0 V
Contact Material
Silver Alloy
Wire Connection Type
Screw Terminals
Features
Fiber Terminal Insulation Barriers Standard, Locking Switches Supplied with One 1498-NT Key, Single Pole-Double Throw and Double Pole-Double Throw
Current Rating
30 A
Market
Industrial
Housing Material
Nylon
Resistance Properties
Ligature Resistant
Voltage Rating
120V AC
Horsepower Rating
0 hp
Locking Style
Straight Key
Switch Material
Nylon
Wattage
1.0 W
Standard
UL Listed
Special Features
Oversized silver alloy contacts, side wired, can be mounted in standard device box,
Amperage
30.0 A

Description

Wall Switch, Color Gray, Current Rating 30 A, Illuminated No, Pilot Light No, Switch Function Momentary, Switch Type Single Pole/Double Throw, Voltage Rating 120V AC, Wiring Method Side, Horsepower Rating 0 hp, Locking Style Fork Key, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Nightlight No, Number of Switches 1, Resistance Properties Ligature Resistant, Standards CSA Certified 17949, UL Listed, Switch Style Locking
