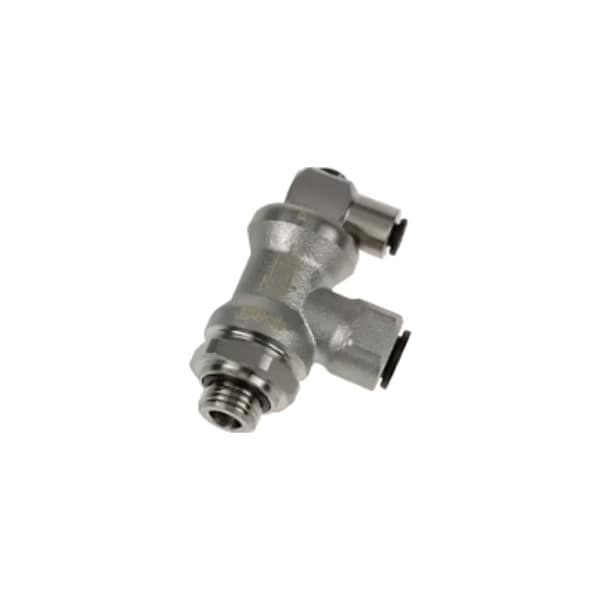

Lockout Valve, Tube Sz 10mm, Brass

  • Mfr # 7880 10 17
  • Zoro # G2794294
product price:
$
347.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure (PSI)
145 psi
Temp. Range
-4 Degrees F to 176 Degrees F
Body Material
Nickel Plated Brass
Max. Pressure
145 psi
Pipe Size
3/8"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
7880 10 17
Zoro #
G2794294
UPC #
820099336213
Country of Origin
France
Item
Air Line Lockout Valve
Max. Pressure (PSI)
145 psi
Temp. Range
-4 Degrees F to 176 Degrees F
Body Material
Nickel Plated Brass
Max. Pressure
145 psi
Connection
BSPP x Tube
Standards
PED, REACH, ROHS
Air Outlet Type
BSPP
Seal Material
NBR
Maximum Operating Temperature
158 Degrees F
Air Inlet Type
BSPP
Number of Air Inlets
1
Air Outlet Gender
Female
Series
7880
Air Inlet Gender
Male
Weight
0.21 kg
Number of Air Outlets
1
Maximum Operating Pressure
145 psi
System Location
Main Line

Dimensions

Pipe Size
3/8"
Tube Size
10mm
Overall Width
3 9/16 in
Overall Height
3 9/16 in
Air Inlet Size
3/8 in
Air Outlet Size
3/8 in

Description

Air Line Lockout Valve, Air Inlet Size 3/8 in, Air Inlet Type BSPP, Air Outlet Size 3/8 in, Air Outlet Type BSPP, Maximum Operating Pressure 145 psi, Maximum Operating Temperature 158 Degrees F, Series 7880, Air Inlet Gender Male, Air Outlet Gender Female, Body Material Nickel Plated Brass, Number of Air Inlets 1, Number of Air Outlets 1, Overall Height 3 9/16 in, Overall Width 3 9/16 in, Seal Material NBR, Standards PED, REACH, ROHS, System Location Main Line
