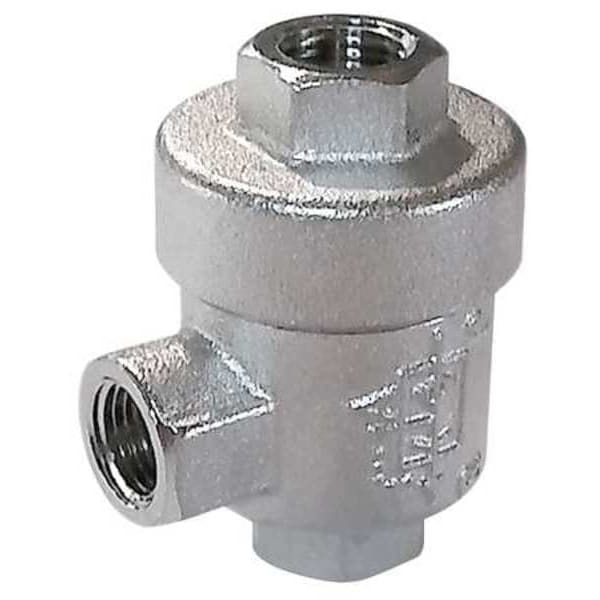

Legris Quick Exhaust Valve, 145 psi Max Op Pressure, 29 psi Min Op Pressure, 1/4 in NPT, 1/4 in NPT 7982 14 14 - main

Quick Exhaust Valve, 145 psi Max Op Pressure, 29 psi Min Op Pressure, 1/4 in NPT, 1/4 in NPT

  • Mfr # 7982 14 14

  • Zoro # G4423991

product price:  $20.39
/ea

Key Features

Max. Operating PSI
150 psi
Inlet Size
1/4 in
Body Material
Brass
Standards
PED Directive 97/23/EC, REACH Regulation 1907/2006, RoHS Directive 2002/95/EC
Overall Length
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
7982 14 14
Zoro #
G4423991
UPC #
820099339009
Country of Origin
Italy

Dimensions

Inlet Size
1/4 in
Overall Length
3/8 in
Overall Height
2 1/8 in
Length (In.)
3/8 in
Height (In.)
2 7/64 in
Port Size (In.)
1/4 in
Air Outlet Size
1/4 in

Details

Item
Quick Exhaust Valve
Max. Operating PSI
150 psi
Body Material
Brass
Standards
PED Directive 97/23/EC, REACH Regulation 1907/2006, RoHS Directive 2002/95/EC
Max. Temp. Range (F)
160
Minimum Operating Temperature
14 Degrees F
Maximum Operating Pressure
145 psi
Air Outlet Type
NPT
Inlet Gender
Female
Maximum Operating Temperature
158 Degrees F
Air Inlet Type
NPT
Air Outlet Gender
Female
Minimum Operating Pressure
29 psi
Body Material Finish
Nickel Plated

Description

Quick Exhaust Valve, Maximum Operating Pressure 145 psi, Minimum Operating Pressure 29 psi, Inlet Size 1/4 in, Air Inlet Type NPT, Air Outlet Size 1/4 in, Air Outlet Type NPT, Inlet Gender Female, Air Outlet Gender Female, Body Material Finish Nickel Plated, Maximum Operating Temperature 158 Degrees F, Minimum Operating Temperature 14 Degrees F, Standards PED Directive 97/23/EC, REACH Regulation 1907/2006, RoHS Directive 2002/95/EC, Body Material Brass, Overall Length 3/8 in
