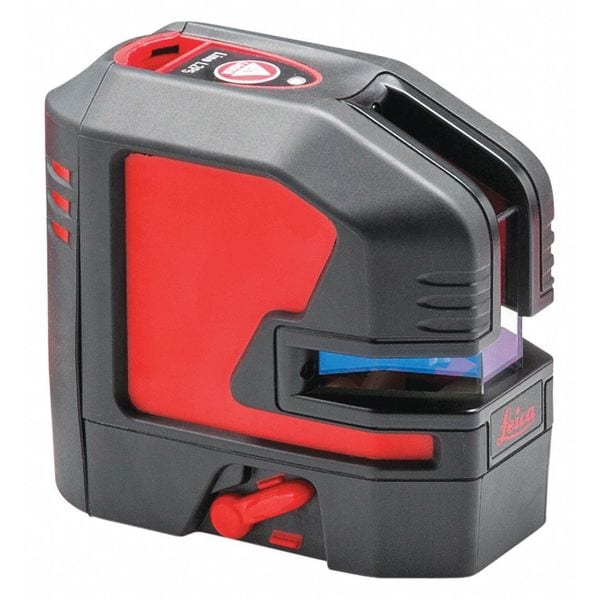

Line and Dot Laser, Interior/Exterior, Red

  • Mfr # Lino L2P5

  • Zoro # G6046630


product price: $609.99
/ea
Free Shipping & Returns

Key Features

Laser Usage Environment
Exterior, Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Electronic Self-Leveling
Number of Beams
5
Number of Dots
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
Lino L2P5
Zoro #
G6046630
UPC #
-
Country of Origin
China

Dimensions

Width
2 3/8 in
Thread Size
1/4 in, 5/8 in
Length
3 7/8 in
Height
3 7/8 in
Overall Height
4 5/16 in
Tripod Thread Size
1/4"-20
Overall Width
2 3/8 in
Overall Depth
3 15/16 in

Details

Item
Line and Dot Laser
Laser Usage Environment
Exterior, Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Electronic Self-Leveling
Number of Beams
5
Number of Dots
4
Number of Lines
2
Laser Color
Red
Range w/o Detector
90 ft
Visual/Audible Indicators
Yes
Accuracy
+/-0.004 in/ft
Number of Level Vials
0
Plumb Down
Yes
Number of Scanning Modes
0
Features
Laser Target, Li-Ion Battery Pack Incl. Charger and Plugs, Quick Start guide, Safety Instructions, Warranty Card
Range w/Detector
260 ft
Total Number of Vials
5
Power Source
Li-Ion Battery or (3) AA Batteries
Auto Leveling Range
+/-3 Degrees
Plumb Up
Yes
IP Rating
IP54
Number of Plumb Vials
0
Auto Shutoff
No
Includes
Case, Charger, Adapter, Target
Preset Angle
180 Degrees
Laser Class
Class 2
Number of 45 Degree Vials
0
Material
Plastic
Battery Type
AA, 20V Max
Plumb Direction
Plumb Down, Plumb Up
Operating Temperature - Maximum
122 Degrees F
Laser Beam Color
Red
Standards
ISO 9001
Level Indicators
Audible, Visual
Includes Batteries
Batteries Included
Automatic Shutoff
Yes
Laser Output
1 mW
Number of 45 Vials
0
Self-Leveling Range
+/-4 Degrees
Use Location
Indoor, Outdoor
Weight
1.17 lb
Mount Type
Magnetic
Operating Temperature - Minimum
14 Degrees F
Working Range with Detector - Maximum
260 ft
Working Range without Detector - Maximum
90 ft
Preset Angles
180 Degrees
Indoor Range - Maximum
262 ft
Outdoor Range - Maximum
262 ft
Bluetooth
Not Bluetooth Compatible
Number of Planes
0

Description

The LEICA LINO Lino L2P5 Line and Dot Laser is a rotary and straight line laser level that combines the features of a line laser and point laser into one powerful tool. The red line and dot laser has an accuracy of +/-0.2 mm/m for dots and +/-0.3 mm/m for lines. This 3 7/8 in. long, 3 7/8 in. high, 2 class laser level runs on either a Li-Ion battery or AA batteries, depending on which you prefer to use. It also has 1/4 in., 5/8 in thread size as well as a 3 7/8 in straight wireway length. With its features, the LEICA LINO Lino L2P5 Line and Dot Laser is the perfect addition to your next project.
