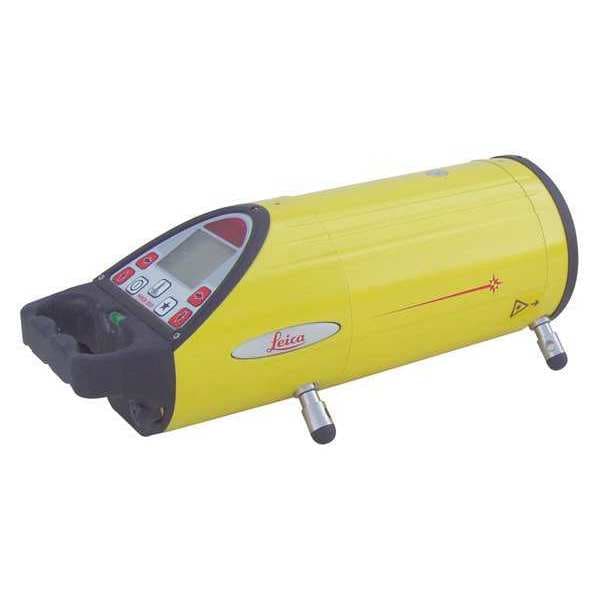

Pipe Laser, Exterior

  • Mfr # PIPER 100 Laser w/ Carrying Case

  • Zoro # G7427799


product price: $5,780.09
/ea
Free Shipping & Returns

Key Features

Length
15 in
Accuracy
+/-1/16 in @ 100 ft
Width
4 in
Features
Self Leveling
Includes
Case, Charger, Holder, Remote Control, Target
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PIPER 100 Laser w/ Carrying Case
Zoro #
G7427799
UPC #
-
Country of Origin
Singapore

Dimensions

Length
15 in
Width
4 in
Height
4 in
Thread Size
5/8"-11
Overall Depth
10 1/2 in
Overall Width
3 7/8 in
Overall Height
4 in
Tripod Thread Size
5/8"-11

Details

Accuracy
+/-1/16 in @ 100 ft
Features
Self Leveling
Includes
Case, Charger, Holder, Remote Control, Target
Number of 45 Degree Vials
0
Number of Level Vials
0
Number of Plumb Vials
0
Slope
+/- 10 Degrees
Auto Shutoff
Yes
Laser Usage Environment
Exterior
Plumb Up
No
Laser Projection
Horizontal
Number of Lines
0
Preset Angle
None
Range w/o Detector
650 ft
Plumb Down
No
Horizontal/Vertical
Horizontal
Auto Leveling Range
+/-5 Degrees
Item
Pipe Laser
Power Source
Li-ion Battery
Laser Color
Red
Number of Dots
1
Visual/Audible Indicators
Yes
Interior/Exterior
Exterior
Laser Class
Class 3R
Total Number of Vials
1
Range w/Detector
660 ft
Number of Scanning Modes
0
IP Rating
IP68
Number of Beams
1
Leveling Type
Electronic Self-Leveling
Grade Capability
Single
Beam Color
Red
Material
Cast Aluminum
Operating Temperature - Maximum
122 Degrees F
Automatic Shutoff
Yes
Number of Planes
0
Operating Temperature - Minimum
-4 Degrees F
Standards
ISO 9001
Weight
4.4 lb
Indoor Range - Maximum
650 ft
Working Range with Detector - Maximum
660 ft
Outdoor Range - Maximum
650 ft
Use Location
Outdoor
Self-Leveling Range
-15% to +30%
Laser Beam Color
Red
Working Range without Detector - Maximum
650 ft
Number of 45 Vials
0
Includes Batteries
Batteries Included
Level Indicators
Audible, Visual
Bluetooth
Not Bluetooth Compatible
Preset Angles
180 Degrees
Battery Type
20V Max
Laser Output
4.75 mW

Description

Pipe Laser, Accuracy +/-1/16 in @ 100 ft, Battery Type 20V Max, Bluetooth Not Bluetooth Compatible, Features Self Leveling, Includes Case, Charger, Holder, Remote Control, Target, Number of Beams 1, Number of Planes 0, Number of Dots 1, Number of Lines 0, Working Range with Detector - Maximum 660 ft, Working Range without Detector - Maximum 650 ft, Mount Type Not Applicable, Includes Batteries Batteries Included, Leveling Type Electronic Self-Leveling, Laser Projection Horizontal
