874847003261 12V 2.25 In. Stroke Actuator With Wire

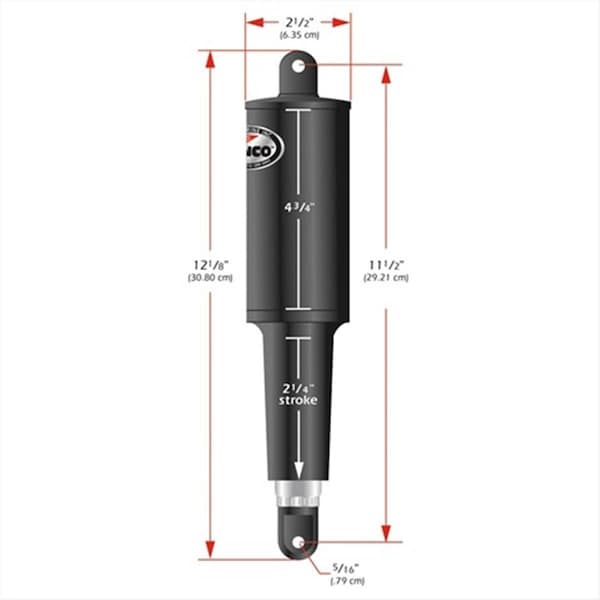

Features Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing Corrosion proof vandar mounts Stainless steel ram won't flex even under extreme loads Double o-ring for maximum protection Ball screw rotates freely on 12 ball bearings at both ends of its stroke so there's no need for complicated limit switches and clutches Self-locking ball screw locks into position and will not drift Precision molded powdered metal high alloy gears provide high accuracy high wear resistance and high strength for long life Tough high-torque motor easily transfers 750 lbs High-impact ultraviolet resistant nylon 66 50% glass fiber reinforced thermoplastic housing Corrosion proof vandar cap and mount stands up to severe loads 5/16 in. Mounting hardware Stroke - 2-1/4 in. Length overall - 12-1/8 in. Length pin to pin - 11-1/2 in. Diameter - 2-1/2 in. Item weight - 4.00 lbs.
