Shop LEVITON

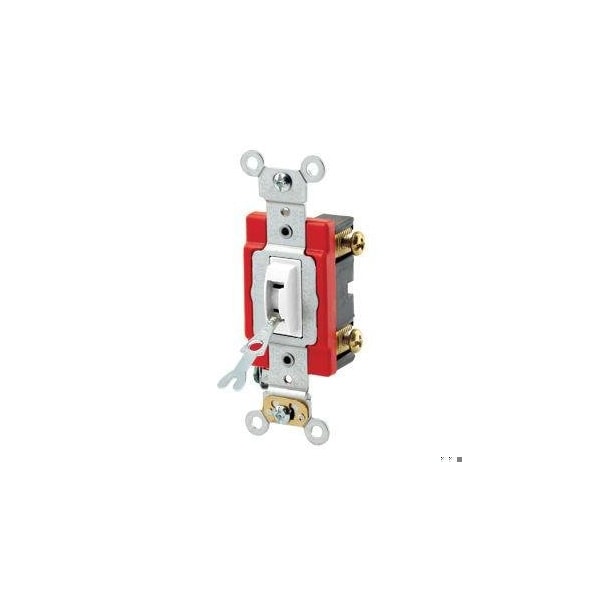

20 Amp, 120/277 Volt, Toggle, Locking Single-Pole Ac Quiet

  • Mfr # 1221-2WL

  • Zoro # G0565671

product price:  $19.15
/ea

Key Features

Switch Function
Maintained
Wiring Method
Back/Side
Switch Style
Toggle
Standards
ANSI C-73, NEMA WD-6, NEMA WD-1, NOM 57, Rated V-2 Per UL 94
Switch Type
Single Pole
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1221-2WL
Zoro #
G0565671
UPC #
-
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Overall Height
4.1 in
Minimum Wire Size
14 AWG
Overall Width
1.3 in
Mount Hole Center-to-Center Height
2.4 in

Details

Switch Function
Maintained
Item
Wall Switch
Wiring Method
Back/Side
Switch Style
Toggle
Standards
ANSI C-73, NEMA WD-6, NEMA WD-1, NOM 57, Rated V-2 Per UL 94
Switch Type
Single Pole
Color
White
Features
10-Year Limited
For Environment
Industrial
Locking Style
Fork Key
Contact Material
Silver Alloy
Housing Material
Thermoplastic
Strap Material
Steel
Resistance Properties
Tamper Resistant
Wire Connection Type
Screw Terminals
Market
Commercial, Industrial
Voltage Rating
120/277V AC
Maximum Operating Temperature
149 Degrees F
Minimum Operating Temperature
-40 Degrees F
Grounding
Grounded
Horsepower Rating
2 hp
Current Rating
20 A
Nightlight
No
Illuminated
No
Pilot Light
No
Number of Switches
1

Description

Wall Switch, Color White, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating 2 hp, Locking Style Fork Key, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 2.4 in, Nightlight No, Number of Switches 1, Resistance Properties Tamper Resistant, Standards ANSI C-73, NEMA WD-6, NEMA WD-1, NOM 57, Rated V-2 Per UL 94, Strap Material Steel
