This item is Discontinued.

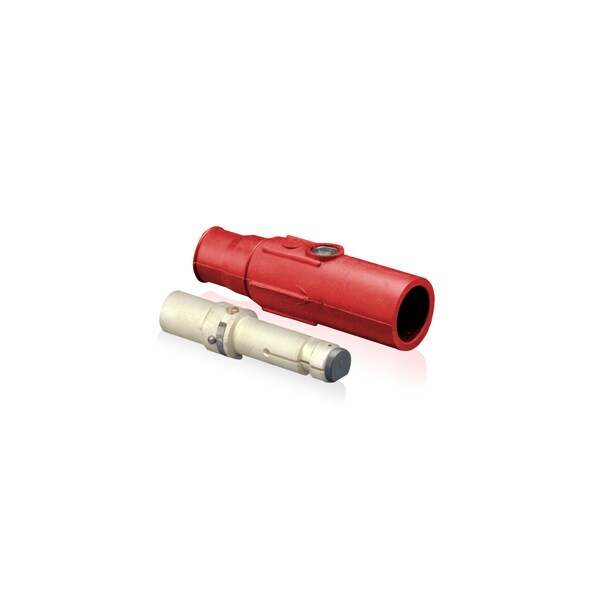

Leviton Connectr, Red, Male, Crimp, 600Vac, Ball Nose 22L22-SR

Connectr, Red, Male, Crimp, 600Vac, Ball Nose (Discontinued)

  • Mfr # 22L22-SR
  • Zoro # G3986858
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22L22-SR
Zoro #
G3986858
UPC #
078477270462
Country of Origin
Mexico

Dimensions

Power Terminals Wire Size
350 MCM to 500MCM
Width
14.00 in
Length
9.00 in
Height
6.7500 in
Wire Size
350 to 500
Dimensions
2.26 in Dia x 7.66 in L

Details

Item
Connector
Type
Cam-Type Detachable Latching Taper Nose
Series
22
Terminal Connection
Crimp
Male/Female
Male
Current Rating
600 Amp
Voltage Rating
600VAC
NEMA Rating
3R
Material
Stantoprene
Conductor Material
Brass
Color
Red
Amps AC/DC
690AC/DC
Single Pole Device Style
Ball Nose
Cable Range
350 to 500 MCM
Fits
Up to 690A Female Single Pole Device
Standards
ETL
Application
Industrial Applications
Connection Type
Crimped/Male
Number of Poles
1
Housing Material
Santoprene TPV
Number of Conductors
1
Specifications
1-Pole, Copper Wire Strain Relief
Amperage Rating
690 A

Description

22 Series Single Pole Cam Type Latching Plug Ball Nose, Crimp Connection, Male Detachable Santoprene, Red, 600 Volts, Rated Up To 690 Amperes Continuous Cable Range - 350-500 MCM
