Shop LEVITON

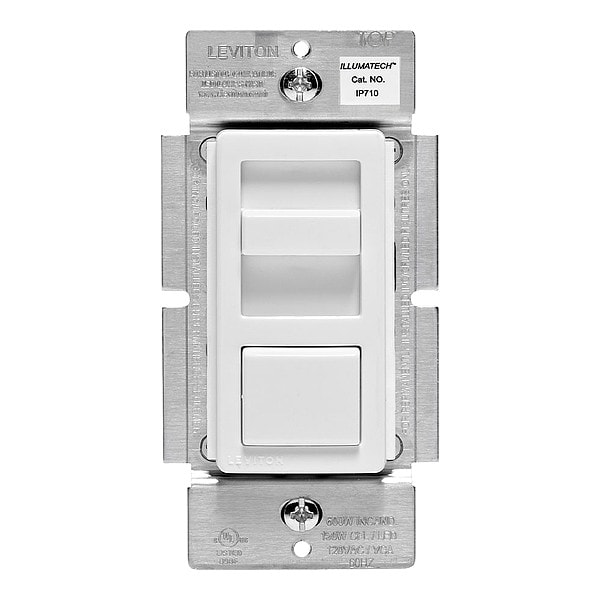

Dimmer, 1-Pole/3-Way, 120/277V AC

  • Mfr # IP710-D0Z

  • Zoro # G704393153

product price:
$
104.99
/ea
Free Shipping & Returns

Key Features

Item - Motion Sensing and Dimming
Dimmer
Switch Style - Motion Sensing and Dimming
Slide
Includes
White, Ivory and Light Almond Color Change Kit
Switch Type - Motion Sensing and Dimming
1-Pole, 3-Way
Operating Voltage - Motion Sensing and Dimming
120/277V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
IP710-D0Z
Zoro #
G704393153
UPC #
078477943557
Country of Origin
China

Details

Item - Motion Sensing and Dimming
Dimmer
Switch Style - Motion Sensing and Dimming
Slide
Includes
White, Ivory and Light Almond Color Change Kit
Switch Type - Motion Sensing and Dimming
1-Pole, 3-Way
Operating Voltage - Motion Sensing and Dimming
120/277V AC
Max. Capacity @ 120VAC
1200VA (Fluorescent, LED)
Max. Capacity @ 277VAC
1500VA (Fluorescent, LED)
Color - Motion Sensing and Dimming
Ivory; Light Almond; White
Color
Ivory; Light Almond; White
Installation Location - Motion Sensor
Wall Switch Box
Ballast Type - Light Dimming
0 to 10V Dimming Fluorescent Ballast
Switch Type
1-Pole, 3-Way
Switch Style
Push Button On/Off, Slide Dimming
Standards
cCSAus, RoHS Compliant
Lighting Technology
Fluorescent, LED
Wall Plate
Not Included
Description/Special Features
Advanced, Captive Wraparound Slide Bar Remains Securely Attached, Exceptional, Flexible, Fluid Slide Movement Allows Fine Adjustment of Light Level With Minimal Effort, Innovative, No Power Pack Required for Switching
Voltage
120/277V AC
Item
Lighting Dimmer
Ballast Type
0 to 10V Dimming Fluorescent Ballast
Dimming Type
Full Continuous Dimming
Includes Wall Plate
Wall Plate Not Included
Number of Switches
1
Current Rating
10 A
Series
IllumaTech
Maximum Operating Temperature
131 Degrees F
Minimum Operating Temperature
32 Degrees F
Dimming Method
0-10V
Load Rating @ 277V AC
1500VA (Fluorescent, LED)
Load Rating @ 120V AC
1,200VA (Fluorescent, LED)
Illuminated
No
Rated Frequency
60 Hz
Neutral Required
No
Preset
Preset
Wallplate
Order Separately
Frequency
60Hz
Action
Standard ON/OFF
Type
Slide
Load Type
Electronic 0-10VDC Fluorescent and 0-10VDC LED Power Supply
Protection
Radio/TV Filter
Ordering Notes
White, Ivory, Light Almond Color Kits
Available Colors
Ivory, White, Gray, Black, Brown, Light Almond, and Red
Standards and Certifications
cCSAus
Style Name
Illumatech
Load Rating
10A, 1200VA, 1500VA
Operating Voltage
120/277V AC

Description

Lighting Dimmer, Lighting Technology Fluorescent, LED, Switch Type 1-Pole, 3-Way, Operating Voltage 120/277V AC, Load Rating @ 120V AC 1,200VA (Fluorescent, LED), Switch Style Push Button On/Off, Slide Dimming, Neutral Required No, Color Ivory; Light Almond; White, Load Rating @ 277V AC 1500VA (Fluorescent, LED), Dimming Method 0-10V, Dimming Type Full Continuous Dimming, Includes Wall Plate Wall Plate Not Included, Series IllumaTech, Current Rating 10 A, Illuminated No
