  11. Dimmer, 1-Pole/3-Way, 120VAC, White

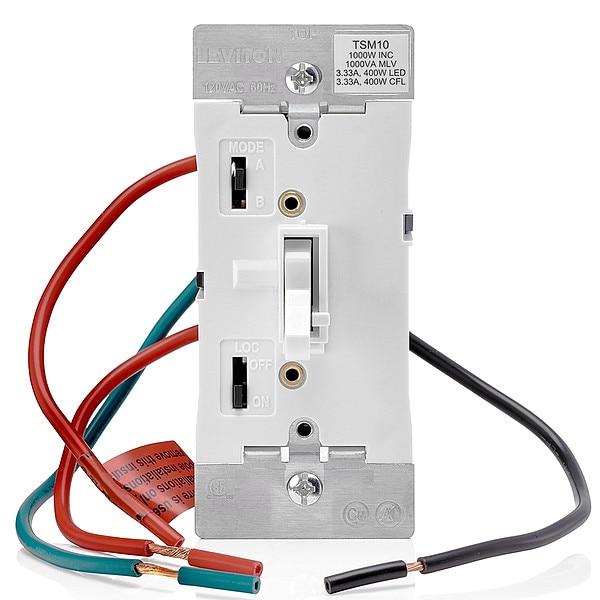

Leviton Dimmer, 1-Pole/3-Way, 120VAC, White TSM10-1LW - main

Dimmer, 1-Pole/3-Way, 120VAC, White

  • Mfr # TSM10-1LW

  • Zoro # G404392876

product price: $29.99
/ea

Key Features

Item - Motion Sensing and Dimming
Dimmer
Switch Style - Motion Sensing and Dimming
Slide, Toggle
Switch Type - Motion Sensing and Dimming
1-Pole, 3-Way
Number of Gangs
1
Operating Voltage - Motion Sensing and Dimming
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TSM10-1LW
Zoro #
G404392876
UPC #
078477771709
Country of Origin
China

Dimensions

Overall Depth
0.7 in
Overall Height
4.1 in
Overall Width
1.75 in

Details

Item - Motion Sensing and Dimming
Dimmer
Switch Style - Motion Sensing and Dimming
Slide, Toggle
Switch Type - Motion Sensing and Dimming
1-Pole, 3-Way
Number of Gangs
1
Operating Voltage - Motion Sensing and Dimming
120V AC
Max. Capacity @ 120VAC
1000VA (MLV), 1000W (Incandescent), 400W (CFL, LED)
Color - Motion Sensing and Dimming
White
Description/Special Features
Built-in Radio/TV Interference Filter, Compact, Integrated Linear Full-Range Slide Control, Microprocessor Control Offers Flexibility, Programming Feature Allows Users to Modify the Dimming Range, Slim
Installation Location - Motion Sensor
Wall Switch Box
Voltage
120V AC
Item
Lighting Dimmer
Switch Type
1-Pole, 3-Way
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Standards
cCSAus, NOM, RoHS Compliant
Wall Plate
Not Included
Color
White
Switch Style
Toggle On/Off, Mini-Slide Dimming
Illuminated
Yes
Maximum Operating Temperature
131 Degrees F
Minimum Operating Temperature
32 Degrees F
Includes Wall Plate
Wall Plate Not Included
Series
ToggleSlide
Number of Switches
1
Neutral Required
No
Rated Frequency
60 Hz
Load Rating @ 120V AC
1,000VA (MLV), 1,000W (Incandescent), 400W (CFL, LED)
Dimming Type
Full Continuous Dimming
Load Type
Incandescent, Halogen, Dimmable LED, Dimmable CFL
Style Name
Toggle Slide
Load Rating
1000W Incandescent, 1000VA MLV, 400W LED and CFL
Action
Toggle Switch for ON/OFF, slide bar for lighting level control
Phase Control
Forward phase control
Preset
Slide bar preserves desired lighting level
Wallplate
Order Separately
Type
Electro-Mechanical
Available Colors
White, Ivory, Light Almond
Protection
Radio/TV Filter
Standards and Certifications
cCSAus, NOM
Frequency
60 Hz
Locator Light
Green locator light that can be disabled
Operating Voltage
120V AC

Description

Lighting Dimmer, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Switch Type 1-Pole, 3-Way, Operating Voltage 120V AC, Load Rating @ 120V AC 1,000VA (MLV), 1,000W (Incandescent), 400W (CFL, LED), Switch Style Toggle On/Off, Mini-Slide Dimming, Neutral Required No, Color White, Load Rating @ 277V AC Not Applicable, Dimming Type Full Continuous Dimming, Includes Wall Plate Wall Plate Not Included, Series ToggleSlide, Illuminated Yes, Number of Gangs 1
