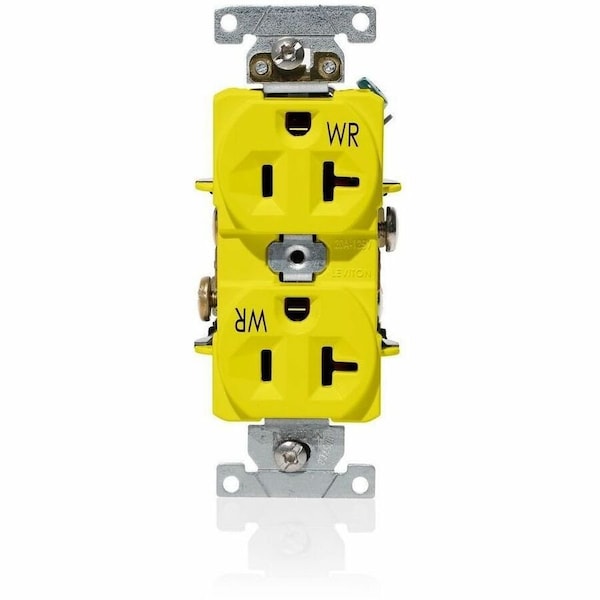

Duplex Receptacle Outlet, 20A, Yellow, 125V
Mfr # WBR20-Y
Zoro # G622982347
product price:Â
$
12.15
/ea
Key Features
NEMA Receptacle Configuration
5-20R
Face Plate Width
1.4 in
For Environment
Food and Beverage, Oily/Greasy
Number of Poles
2
Face Plate Height
2.8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- WBR20-Y
- Zoro #
- G622982347
- UPC #
- 078477335314
- Country of Origin
- Mexico
Dimensions
- Face Plate Width
- 1.4 in
- Face Plate Height
- 2.8 in
- Minimum Wire Size
- 14 AWG
- Mount Hole Center-to-Center Height
- 3.3 in
- Maximum Wire Size
- 10 AWG
- Overall Depth
- 1.1 in
Description
Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Yellow, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Weather Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-2
