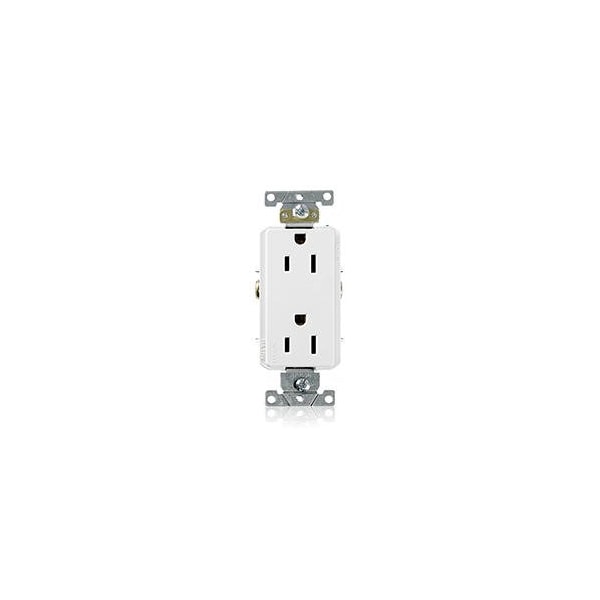

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 16242-W

  • Zoro # G516090691

product price:
$
5.99
/ea
Sold in multiples of 10 for $59.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16242-W
Zoro #
G516090691
UPC #
078477788226
Country of Origin
Mexico

Dimensions

Face Plate Height
2.8 in
Face Plate Width
1.6 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Overall Depth
1.1 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
ANSI-C-73, CSA C22.2 No. 42 File LR-406, cULus, NON-ANCE, RoHS, UL 498, FED SPEC W-C-596, CSA C22.2 No. 42, UL 498, File E13399
Resistance Properties
Tamper Resistant
Number of Gangs
1
Features
Smooth Face
Number of Outlets
2
Horsepower Rating
1/2 hp
Maximum Operating Temperature
60 Degrees C
Market
Commercial
Contact Material
Phosphor Bronze
Minimum Operating Temperature
-40 Degrees C
UL 94 Flammability Rating
V-2
For Environment
Food and Beverage, Oily/Greasy
Connection Orientation
Straight
Housing Material
PBT Polyester
GFCI
No
NEMA Enclosure Rating
Not Rated
Cover Type
No Cover
Shrouded
No
IP Rating
Not Rated
Flange Type
Non-Flanged
AFCI
No
Grade
General Use
Surge Protection
No
Number of Wall Plates Included
0
Polarized
Yes

Description

Duplex Receptacle Outlet
