  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

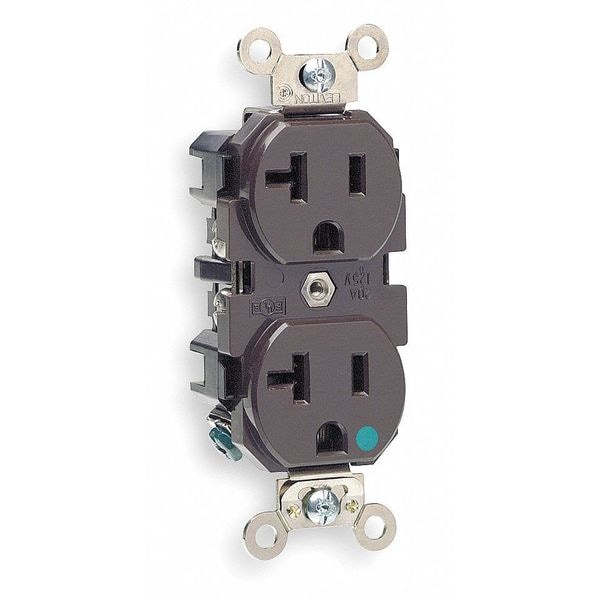

Leviton Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 8300 - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 8300

  • Zoro # G204836488

product price: $12.59
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8300
Zoro #
G204836488
UPC #
07847781861
Country of Origin
Mexico

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-6, RoHS Compliant, UL 498HG File E13399, UL Federal Specification WC-596 File E13399
Wiring Method - Plugs and Receptacles
Back and Side
Material
Nylon (Body and Face)
Sub-Category
Duplex Receptacles
Voltage
125 VAC
Outlet Type - Plugs and Receptacles
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Application Environment
Extra Heavy-Duty Hospital Grade
Housing Material
Nylon
Grade
Hospital Grade Fed. Spec.
Number of Outlets
2
Connection Orientation
Straight
Polarized
Yes
Horsepower Rating
1 hp
GFCI
No
Cover Type
No Cover
NEMA Enclosure Rating
Not Rated
Current Limiting
Full Rated Current
Ground Clips
Nickel-Plated Brass
Torque Range
14-16 inch pounds
Device Type
Duplex Receptacle Outlet
Strap Material
Nickel Plated Brass
Pole
2
Grounding Screw
Plated Brass
UL Fed Spec WC-596
File E13399
Screw Terminal Torque
14-18 in-lbs
NEMA
WD-6
Face Material
Nylon
Operating Temperature
-40°C to 60°C
Dielectric Voltage
Withstands 2000V per UL498
CSA C22.2 No. 42
File 152105
Body Material
Nylon
UL498HG
File E13399
Terminal Accom.
14-10 AWG
Clamp Nuts
Zinc-Plated Steel
ANSI
C-73
Feature 4
Smooth Face
Line Contacts
Nickel-Plated Brass Triple-Wipe .040 Thick
Wire
3
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Yoke
Nickel-Plated Brass
Termination
Back or Side Wire
Terminal Screws
Nickel-Plated Brass 10-32
Flammability
Rated V-2 per UL 94
UL 94 Flammability Rating
V-2
Current
20 A

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
