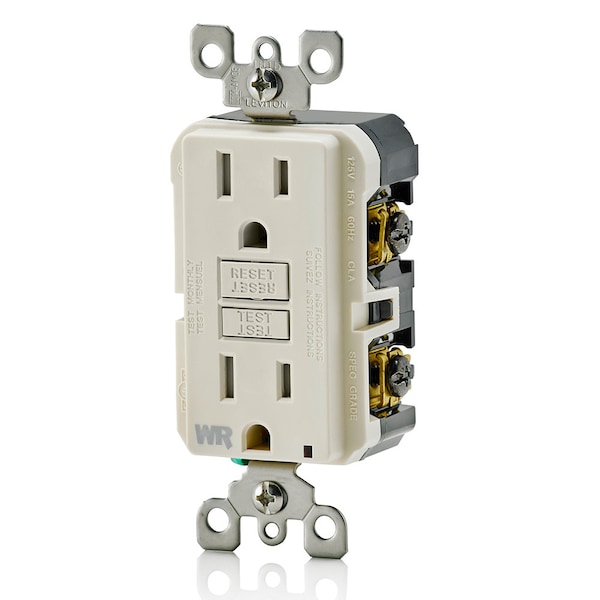

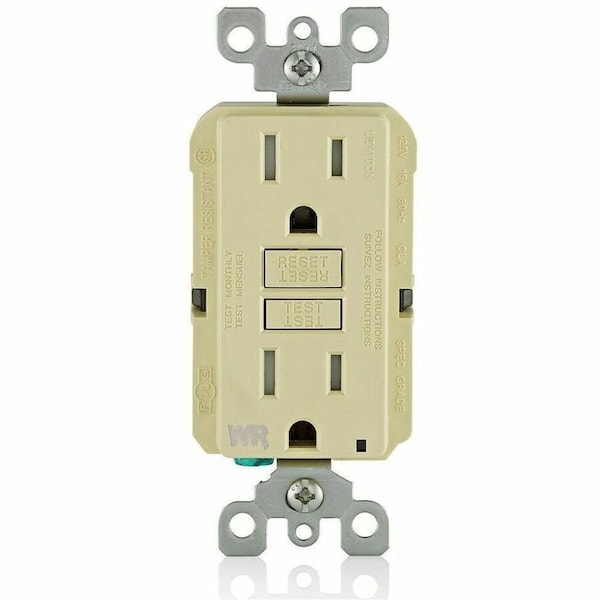

Leviton ELECTRICAL RECEPTACLES 15A WR/TR SLIM GCFI IV GFWT1-I - main

ELECTRICAL RECEPTACLES 15A WR/TR SLIM GCFI IV

  • Mfr # GFWT1-I

  • Zoro # G3897653

product price: $26.32
/ea

Key Features

Grounding
Green Ground Screw
Standards
ANSI C73CSA C22.2 No. 144.1-06/42 File No. LR57811Federal Specification WC596MIL-SPEC A-A-55459-SBNOM CertifiedUL 498/943 File No. E48380
Weather Resistant
Yes
Color
Ivory
Tamper Resistant
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFWT1-I
Zoro #
G3897653
UPC #
78477709122
Country of Origin
China

Dimensions

Length
8.7500 in
Height
5.0000 in
Dimensions
4.21 in H x 1.69 in W x 1.32 in D

Details

Grounding
Green Ground Screw
Standards
ANSI C73CSA C22.2 No. 144.1-06/42 File No. LR57811Federal Specification WC596MIL-SPEC A-A-55459-SBNOM CertifiedUL 498/943 File No. E48380
Weather Resistant
Yes
Color
Ivory
Tamper Resistant
Yes
Voltage
125 VAC
Type
GFCI
UL 943
File E48380
Fed Spec WC-596
Yes
Terminal Screws
Stainless Steel
Pole
2
Wire
3
Grade
Residential/Commercial Specification Grade
Feature
Self-Test
UL498
Yes
NEMA
5-15R
ANSI
C-73
Grounding Screw
Stainless Steel
Line Contacts
Brass Double-Wipe .031 Thick
Face Material
Polypropylene
At Rated Voltage
1 HP
Yoke
Stainless Steel
Standards and Certifications
UL/CSA, NEMA WD6
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
CSA C22.2 No. 42
Yes
Terminal Accom.
14-10 AWG
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Termination
Back & Side
CSA-C22.2 No. 144.1-06
File LR-57811
Short Circuit Current Rating
10KA
Operating Temperature
-35C to +66C
Amperage
15 A
Trip Level
Class A, 5mA plus or minus 1mA
Strap Material
Stainless Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Clamps
Brass
Body Material
Polycarbonate
Voltage Rating
125 V
NEMA Rating
NEMA 5-15R
Terminal Type
Back/Side Wired
Temperature Rating
-35 to 66 °C

Description

Self-Test Tamper Resistant, Weather Resistant GFCI Receptacle. Nema 5-15R, 15A-125V At Receptacle, 20A-125V Feed-through - Ivory With Ivory Test And Reset Buttons
