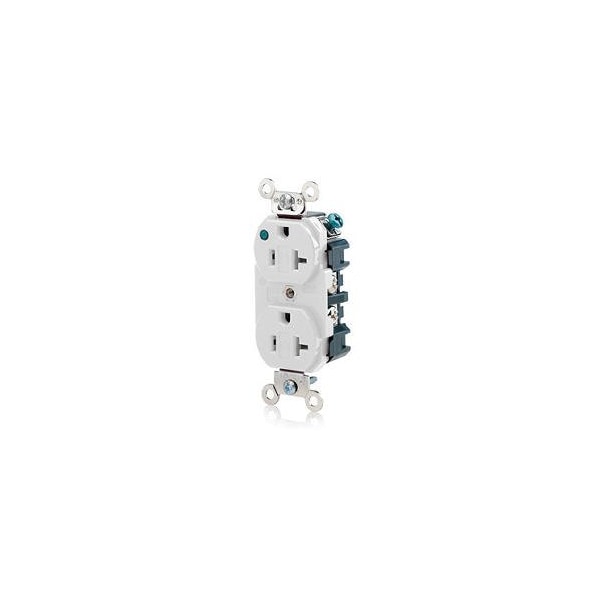

Electrical Receptacles 5-20R Power Ind Hg Recep White

  • Mfr # 8300-PLW

  • Zoro # G0812701

product price:  $27.53
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8300-PLW
Zoro #
G0812701
UPC #
-
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.5 in
Face Plate Height
2.8 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG
Flange Type
Non-Flanged
Number of Gangs
1
Includes
Mounting Hardware
Contact Material
Brass
Horsepower Rating
1 hp
Market
Commercial, Industrial
Grade
Hospital Grade
Housing Material
Nylon
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Maximum Operating Temperature
140 Degrees F
Number of Outlets
2
Features
Power Indication, Smooth Face
Polarized
Yes
NEMA Enclosure Rating
Not Rated
Surge Protection
No
AFCI
No
Shrouded
Yes
Cover Type
No Cover
GFCI
No
Number of Wall Plates Included
0

Description

Straight Blade Duplex Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Surface, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
