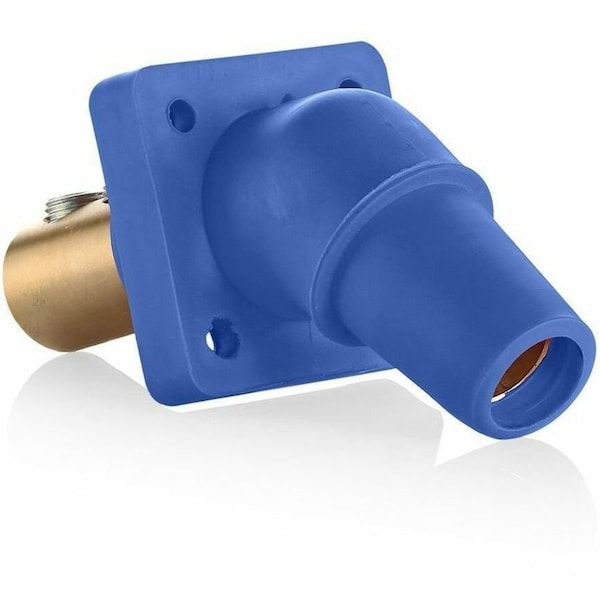

Female Receptacle
Mfr # 16R28-UB
Zoro # G615866913
product price:Â $83.15
/eaKey Features
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
Standards
UL 1691
Flange Height
2.29 in
Flange Width
0.5 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16R28-UB
- Zoro #
- G615866913
- UPC #
- 078477718377
- Country of Origin
- Mexico
Dimensions
- Flange Height
- 2.29 in
- Flange Width
- 0.5 in
- Maximum Wire Size
- 4/0 AWG
- Overall Length
- 3.62 in
- Minimum Wire Size
- 2/0 AWG
- Overall Width
- 2.29 in
- Wire Rope Length
- 3.62 in
Details
- Item
- Single Pole Receptacle
- Current Rating
- 400 A
- Voltage Rating
- 600V AC, 600V DC
- Standards
- UL 1691
- For Location
- Indoor, Outdoor
- NEMA Enclosure Rating
- 3R
- Contact Material
- Brass
- Flange Shape
- Square
- Terminal Connection Type
- Double Set Screw
- Connection Orientation
- Angled
- End Type
- Taper Nose
- Housing Material
- Santoprene TPV
- Phase
- Single
- Housing Color
- Blue
- Gender
- Female
- Mounting Style
- Through Hole Mounting
- Series
- 16
Description
Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Female, Housing Color Blue, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2/0 AWG, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Diameter Not Applicable, Flange Height 2.29 in, Flange Shape Square, Flange Width 0.5 in, NEMA Enclosure Rating 3R, Standards UL 1691, Terminal Connection Type Double Set Screw
