  6. Flanged Locking Inlet, 30 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White

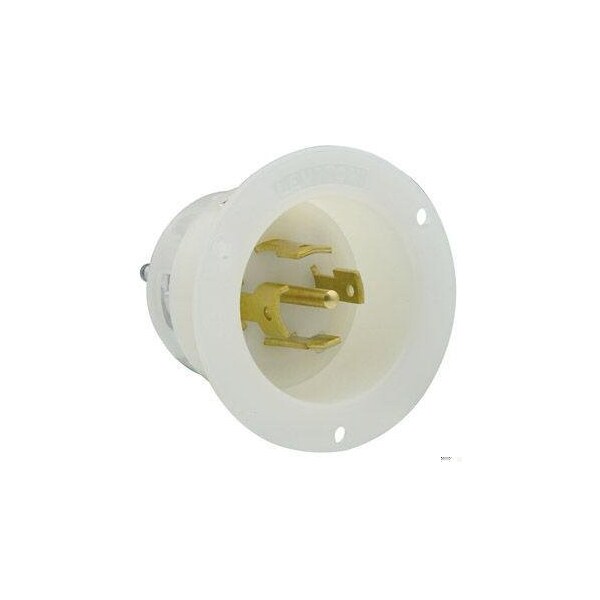

Leviton Flanged Locking Inlet, 30 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White 2825 - main

Flanged Locking Inlet, 30 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White

  • Mfr # 2825

  • Zoro # G615864728

product price:  $63.19
/ea

Key Features

NEMA Receptacle Configuration
L22-30P
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2825
Zoro #
G615864728
UPC #
078477806579
Country of Origin
Mexico

Dimensions

Overall Depth
2 in
Maximum Wire Size
10 AWG
Flange Height
2 in
Flange Diameter
3.03 in
Flange Width
3.8 in
Minimum Wire Size
18 AWG
Face Diameter
2.03 in

Details

Item
Locking Plug
NEMA Receptacle Configuration
L22-30P
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
ANSI, CSA, NEMA, NOM, UL Fed Spec, UL498
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Flange Material
Nylon
Wiring Style
Standard
NEMA Enclosure Rating
6
Shrouded
Yes
NEMA Plug Configuration
L22-30P
Midget Locking
No
Market
Industrial
Maximum Operating Temperature
140 Degrees F
Horsepower Rating
5 hp
For Environment
Dry
Includes Mounting Hardware
Yes
Includes
Gasket, Screws
Flange Shape
Round
Housing Material
Nylon
Number of Blades
4
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Polarized
Yes
Grade
Federal Specification
Number of Gangs
1
IP Rating
Not Rated
UL 94 Flammability Rating
V-2
Series
Insulgrip
Features
VARI-SIZE(R) Insert Adjusts to Wide Range of Cord Sizes
Number of Outlets
1

Description

Thrity Amp
