  11. Flanged Locking Receptacle, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Yellow

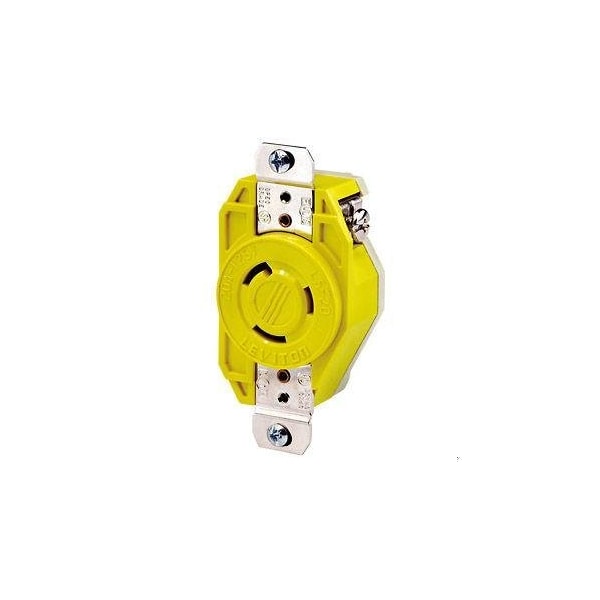

Leviton Flanged Locking Receptacle, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Yellow 23CM-10 - main

Flanged Locking Receptacle, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Yellow

  • Mfr # 23CM-10

  • Zoro # G516090400

product price: $34.69
/ea

Key Features

NEMA Receptacle Configuration
L5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
23CM-10
Zoro #
G516090400
UPC #
-
Country of Origin
Mexico

Dimensions

Face Plate Height
2.67 in
Maximum Wire Size
8 AWG
Face Plate Width
1.69 in
Face Diameter
1.56 in
Mount Hole Center-to-Center Height
3.28 in
Overall Depth
1.31 in
Minimum Wire Size
14 AWG

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
L5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
Yellow
Mount Type
Flush
NEMA Enclosure Rating
Not Rated
Standards
ANSI C-73, CSA: C22.2 No. 42, NEMA WD-1 and WD-6, NOM 57, RoHS, UL 498, UL FED SPEC W-C-596
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Wiring Style
Standard
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
1 hp
Contact Material
Nickel-Plated Brass
Polarized
Yes
Number of Gangs
1
Maximum Operating Temperature
60 Degrees C
Market
Industrial
Housing Material
Valox 357
Connection Orientation
Straight
For Environment
Corrosive

Description

Flush Mtg Locking Receptacle,Yellow
