  11. GFCI Receptacle, 15A, 125VAC, 5-15R, Almond

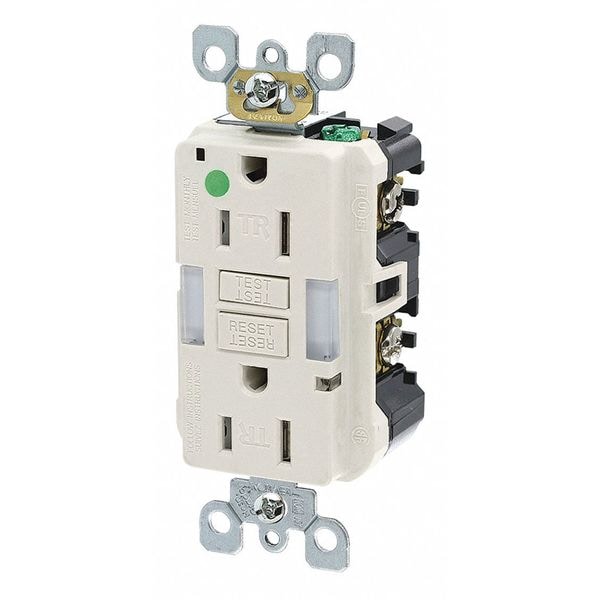

Leviton GFCI Receptacle, 15A, 125VAC, 5-15R, Almond GFNL1-HGT - main

GFCI Receptacle, 15A, 125VAC, 5-15R, Almond

  • Mfr # GFNL1-HGT

  • Zoro # G1658137

product price: $49.59
/ea

Key Features

Connection Orientation
Straight
Cover Type
Screw-On Cover
Current Rating
15/20 A (Feed-Through)
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNL1-HGT
Zoro #
G1658137
UPC #
078477723586
Country of Origin
China

Dimensions

Overall Depth
1.4 in
Face Plate Height
2.7 in
Maximum Wire Size
12 AWG
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.8 in
Minimum Wire Size
14 AWG
Flange Diameter
3.8 in
Flange Height
4.2 in
Flange Width
1.3 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
Screw-On Cover
Current Rating
15/20 A (Feed-Through)
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Light Almond
Number of Outlets
2
Housing Material
Polycarbonate
Mounting Type
Flush
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA, CSA C22.2 No. 42 and 144, Fed Spec W-C-596, NOM-ANCE, UL, UL 498, UL 943
Weather Resistant
No
Application Environment
Hospital Grade
Voltage
125VAC
Special Features
Illuminated
HP
1.0
Outlet Type
Decorator
Surge Suppression
No
NEMA Configuration
5-15R
Tamper Resistant
Yes
Amps
15A
Wiring Method
Back, Side
Reset Type
Manual
Color
Light Almond
Power Indicator
Yes
Self-Testing
Yes
Grade
Hospital Grade
Features
Reset Lockout Mechanism Prevents Reset of the GFCI if it is Not Wired or Operating Correctly
Receptacle Type
Decorator Duplex
Wire Connection Type
Screw Terminals
Number of Wall Plates Included
0
Visual Indicator Lights
Power Connected
Hub Type
Feed Through
Contact Material
Brass
Maximum Operating Temperature
66 Degrees C
Number of Gangs
4
UL 94 Flammability Rating
V-0
Self Testing
Yes
Voltage Rating
125V AC
Minimum Operating Temperature
-35 Degrees C
Horsepower Rating
1 hp
Resistance Properties
Tamper Resistant
AFCI
No
Wall Plate Material
Not Included
For Location
Indoor
Flange Shape
Square
Includes Mounting Hardware
Yes
Maximum Surge Current
6.5 kA
Surge Protection
No
For Environment
Industrial
IP Rating
Not Rated
Flange Type
Non-Flanged
Includes
Mounting Hardware
Market
Commercial
Shrouded
Yes
Flange Material
Stainless Steel
Reverse Service
No
Housing Material Finish
Plain
Mount Type
Flush

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type Screw-On Cover, Current Rating 15/20 A (Feed-Through), GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Light Almond, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 4, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex
