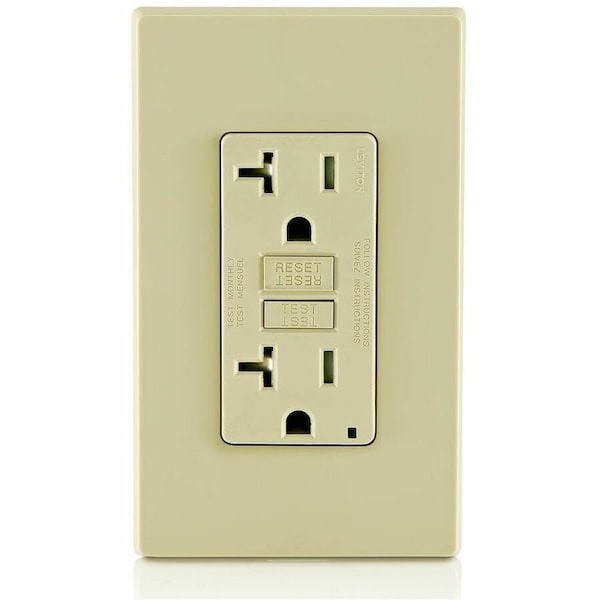

Leviton GFCI Receptacle, 20A, 125Vac, 5-20R, Ivory GFTR2-I - main

GFCI Receptacle, 20A, 125Vac, 5-20R, Ivory

  • Mfr # GFTR2-I

  • Zoro # G3836263

product price:  $26.59
/ea

Key Features

Grounding
Self Grounding
Mounting Type
Flush
Number of Poles
2
Number of Wires
3
Standards
ANSI C73CSA C22.2 No. 144.1-06/42 File No. LR57811Federal Specification WC596MIL-SPEC A-A-55459-SBNOM CertifiedUL 498/943 File No. E48380
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GFTR2-I
Zoro #
G3836263
UPC #
78477497302
Country of Origin
China

Dimensions

Dimensions
4.21 in H x 1.69 in W x 1.4 in D
Height
6.2500 in
Length
9.2500 in

Details

Item
GFCI Receptacle
Grounding
Self Grounding
Mounting Type
Flush
Number of Poles
2
Number of Wires
3
Standards
ANSI C73CSA C22.2 No. 144.1-06/42 File No. LR57811Federal Specification WC596MIL-SPEC A-A-55459-SBNOM CertifiedUL 498/943 File No. E48380
Power Indicator
Yes
Self-Testing
Yes
Amps - Plugs and Receptacles
20
Weather Resistant - Plugs and Receptacles
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
Tamper Resistant
Yes
Amps
20A
Voltage
125VAC
Surge Suppression
No
Reset Type
Automatic
Voltage - Plugs and Receptacles
125VAC
Item - Plugs and Receptacles
GFCI Receptacle
Outlet Type
Decorator
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Mounting Type - Plugs and Receptacles
Flush
Amps - Plugs and Receptacles
20
HP
1.0
Color
Ivory
NEMA Configuration
5-20R
Type
Standard Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Wiring Method
Back and Side
Application Environment
Commercial
Weather Resistant
No
Color - Plugs and Receptacles
Ivory
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Flammability
Rated V-2 per UL 94
Terminal Screws
Plated Steel
Standards and Certifications
UL/CSA, NEMA WD6
Grounding Screw
Plated Steel
Wallplate
Included
ANSI
C-73
Torque Range
14-18 in.-lbs
Terminal Accom.
14-10 AWG
Trip Level
Class A, 5mA plus or minus 1mA
UL498
Yes
Short Circuit Current Rating
10KA
At Rated Voltage
1 HP
Face Material
Thermoplastic
Operating Temperature
-35C to +66C
Grade
Residential/Commercial Specification Grade
Wire
3
Pole
2
Termination
Back & Side
Strap Material
Galvanized Steel
Feature
Self-Test
Clamps
Brass
Amperage
20 A
NEMA
5-20R
UL 943
File E48380
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Body Material
Polycarbonate
Line Contacts
Brass Triple-Wipe
Yoke
Zinc-Plated Steel
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
CSA-C22.2 No. 144.1-06
File LR-57811
CSA C22.2 No. 42
Yes
Fed Spec WC-596
Yes
NEMA Rating
NEMA 5-20R
Voltage Rating
125 V
Terminal Type
Back/Side Wired
Temperature Rating
-35 to 66 °C

Description

Shallow Tamper Resistant GFCI Receptacle Nema 5-20r 20a-125v Receptacle, 20a-125v Feed-through W/Test And Reset Buttons W/ Mounting Screw, Washers, Instruction Sheet, And Self-Ground Clip STD Nylon Wallplaye Included
