  11. GFCI Receptacle, 20A, 125Vac, 5-20R, White

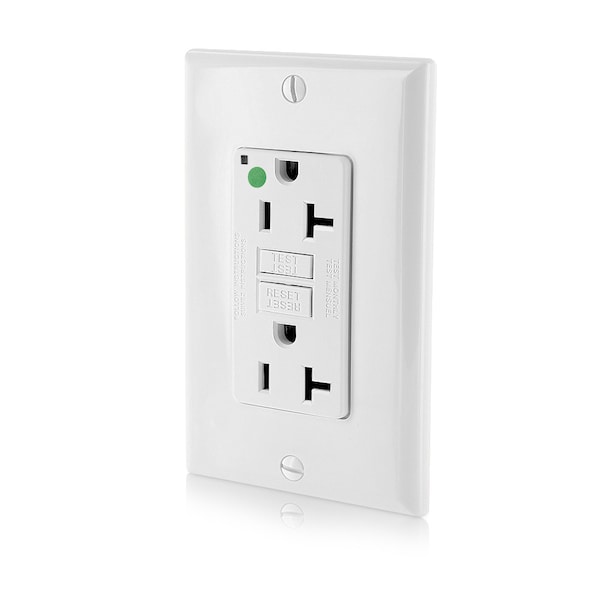

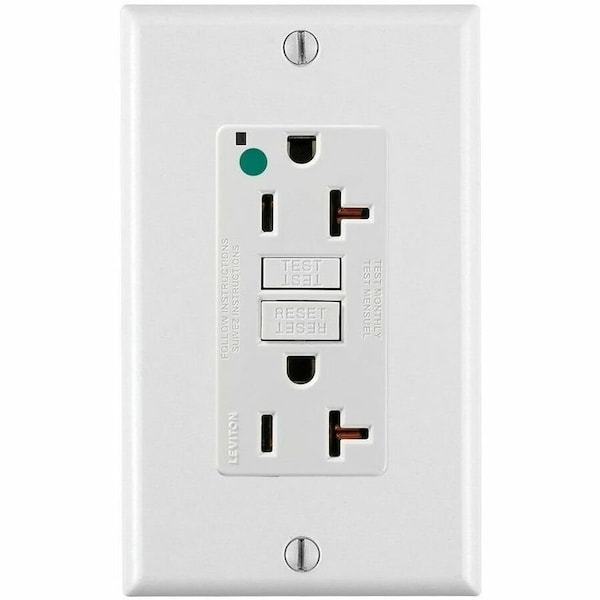

Leviton GFCI Receptacle, 20A, 125Vac, 5-20R, White GFNT2-HGW - main

GFCI Receptacle, 20A, 125Vac, 5-20R, White

  • Mfr # GFNT2-HGW

  • Zoro # G3837006

product price: $37.06
/ea

Key Features

Grounding
Self-Grounding
Mounting Type
Flush
Material
Polycarbonate / PBT
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNT2-HGW
Zoro #
G3837006
UPC #
78477725061
Country of Origin
China

Dimensions

Length
2.88 in
Width
1.69 in
Height
4.69 in
Dimensions
4.05 in H x 1.74 in W x 1.36 in D

Details

Item
GFCI Receptacle
Grounding
Self-Grounding
Mounting Type
Flush
Material
Polycarbonate / PBT
Number of Poles
2
Number of Wires
3
Tamper Resistant
No
Color
White
NEMA Configuration
5-20R
Amps
20A
Application Environment
Hospital Grade
Power Indicator
Yes
Surge Suppression
No
Outlet Type
Decorator
Self-Testing
Yes
Weather Resistant
No
Type
Self-test SmartLock Pro Slim GFCI
Voltage
125VAC
Reset Type
Automatic
HP
1.0
Wiring Method
Back and Side
Application
Extra-Heavy Duty Hospital Grade
Strap Material
Galvanized Steel
Terminal Accom.
14-10 AWG solid or stranded
Screw Terminal Torque
14-18 in-lbs
Feature
Wallplate Included|Power Indication
Device Type
Duplex Receptacle Outlet
Short Circuit Current Rating
10kA
Operating Temperature
-35C to +66C
Wire
3
Ground Clips
Brass
At Rated Voltage
1 HP
Amperage
20 A
Termination
Back and Side Wire
Function
GFCI
Certification/Listing
UL, CSA, NOM-ANCE
Face Material
PBT
Pole
2
Terminal Clamp
Brass
ANSI
C-73
Body Material
Polycarbonate
Grounding Screw
Plated Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Flammability
Rated V-0 per UL 94
NEMA
WD-1 & WD-6
Line Contacts
Brass
Grade
Extra Heavy-Duty Hospital Grade
Terminal Screws
Plated Steel
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Temperature Rating
-35C to +66C °C
Terminal Type
Back/Side Wired
Voltage Rating
125 V

Description

20 Amp, 125 Volt, SmartlockPro Slim Self-Test GFCI Receptacle, Extra-Heavy Duty Hospital Grade, NEMA 5-20R, 20A Feed-Through, 2P, 3W, Matching Wallplate Included - WHITE
