  11. GFCI Receptacle, 20A, 125Vac, 5-20R, White

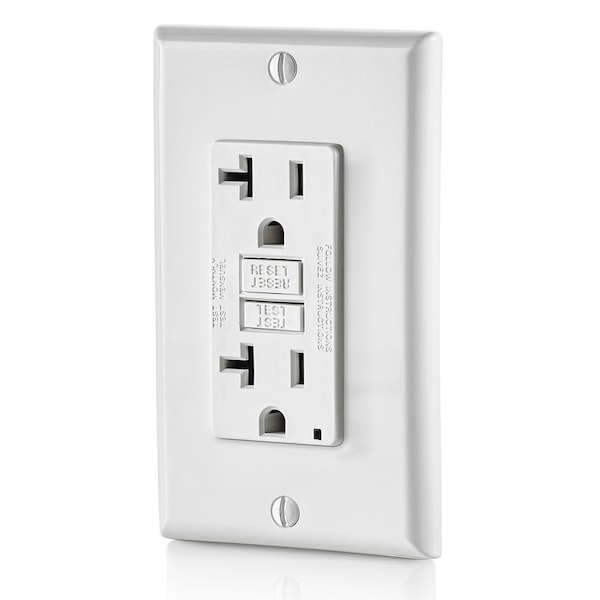

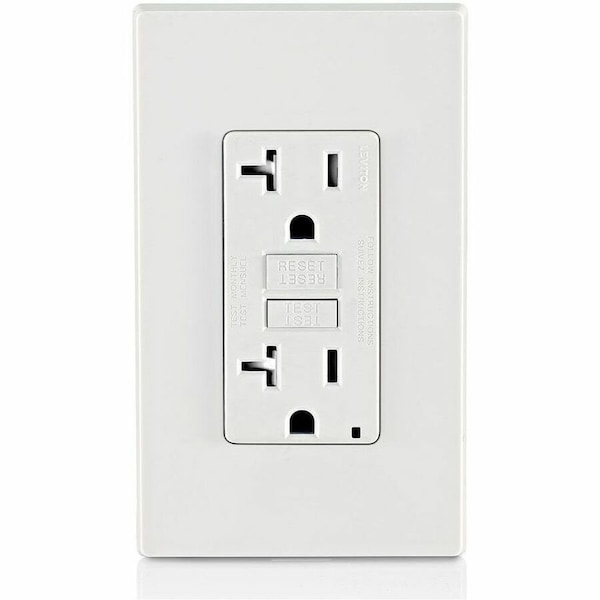

Leviton GFCI Receptacle, 20A, 125Vac, 5-20R, White GFTR2-W - main

GFCI Receptacle, 20A, 125Vac, 5-20R, White

  • Mfr # GFTR2-W

  • Zoro # G3834014

product price: $25.19
/ea

Key Features

Grounding
Self Grounding
Mounting Type
Flush
Number of Poles
2
Number of Wires
3
Standards
ANSI C73CSA C22.2 No. 144.1-06/42 File No. LR57811Federal Specification WC596MIL-SPEC A-A-55459-SBNOM CertifiedUL 498/943 File No. E48380
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTR2-W
Zoro #
G3834014
UPC #
78477497364
Country of Origin
China

Dimensions

Length
2.88 in
Height
4.69 in
Width
1.69 in
Dimensions
4.21 in H x 1.69 in W x 1.4 in D

Details

Item
GFCI Receptacle
Grounding
Self Grounding
Mounting Type
Flush
Number of Poles
2
Number of Wires
3
Standards
ANSI C73CSA C22.2 No. 144.1-06/42 File No. LR57811Federal Specification WC596MIL-SPEC A-A-55459-SBNOM CertifiedUL 498/943 File No. E48380
Weather Resistant - Plugs and Receptacles
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
NEMA Configuration
5-20R
Amps
20A
Power Indicator
Yes
Self-Testing
Yes
Amps - Plugs and Receptacles
20
Outlet Type - Plugs and Receptacles
Decorator Duplex
Reset Type
Automatic
Amps - Plugs and Receptacles
20
Outlet Type
Decorator
Item - Plugs and Receptacles
GFCI Receptacle
Application Environment
Commercial
Color - Plugs and Receptacles
White
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type - Plugs and Receptacles
Flush
Surge Suppression
No
Wiring Method
Back and Side
Color
White
Voltage
125VAC
Type
Standard Duplex
HP
1.0
Voltage - Plugs and Receptacles
125VAC
Weather Resistant
No
Tamper Resistant
Yes
CSA C22.2 No. 42
Yes
Yoke
Zinc-Plated Steel
Terminal Screws
Plated Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Grade
Residential/Commercial Specification Grade
Flammability
Rated V-2 per UL 94
Operating Temperature
-35C to +66C
UL498
Yes
Terminal Accom.
14-10 AWG
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Face Material
Thermoplastic
Fed Spec WC-596
Yes
ANSI
C-73
UL 943
File E48380
Pole
2
Trip Level
Class A, 5mA plus or minus 1mA
Strap Material
Galvanized Steel
Feature
Self-Test
Grounding Screw
Plated Steel
Wallplate
Included
Line Contacts
Brass Triple-Wipe
Wire
3
CSA-C22.2 No. 144.1-06
File LR-57811
Standards and Certifications
UL/CSA, NEMA WD6, NEMA WD1
Termination
Back & Side
Amperage
20 A
NEMA
5-20R
Torque Range
14-18 in.-lbs
Body Material
Polycarbonate
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Clamps
Brass
At Rated Voltage
1 HP
Short Circuit Current Rating
10KA
NEMA Rating
NEMA 5-20R
Temperature Rating
-35 to 66 °C
Voltage Rating
125 V
Terminal Type
Back/Side Wired

Description

Self-Test Slim Tamper Resistant GFCI Receptacle. Nema 5-20R 20A-125V At Receptacle, 20A-125V Feed-through. Lighted - White With White Test And Reset Button.
