  11. GFCI Receptacle, 5-20R, 20 A, 2 Pole, 3 Wire, Grounded

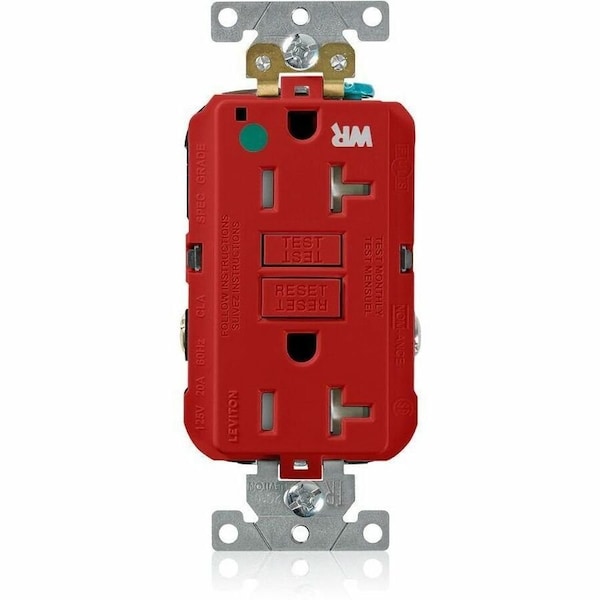

Leviton GFCI Receptacle, 5-20R, 20 A, 2 Pole, 3 Wire, Grounded GFWT2-HGR - main

GFCI Receptacle, 5-20R, 20 A, 2 Pole, 3 Wire, Grounded

  • Mfr # GFWT2-HGR

  • Zoro # G310565753

product price: $37.79
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Grounding
Grounded
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFWT2-HGR
Zoro #
G310565753
UPC #
078477726273
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Width
1.7 in
Mount Hole Center-to-Center Height
3.8 in
Overall Depth
1.4 in
Face Plate Height
2.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Grounding
Grounded
Housing Color
Red
Housing Material
Polycarbonate
NEMA Enclosure Rating
5
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI, CSA C22.2, CSA Certified, UL 498, UL 943, UL Listed
Features
Conformal Coated PC Board to Protect Critical Components from Moisture, Designed for Wet and Damp Locations to Meet the Requirements of Nec(R) Section 406.8
Includes
6 in #12 AWG TEW Line and Load Leads, Ground Wire
Market
Commercial, Industrial
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
150.8 Degrees F
Reset Type
Manual
Horsepower Rating
1 hp
Voltage Rating
125V AC
Number of Outlets
2
Wiring Method
Back, Side
IEC Configuration
C73
Resistance Properties
Tamper Resistant, Weather Resistant
For Environment
Industrial
Minimum Operating Temperature
-31 Degrees F
Contact Material
Brass
Number of Gangs
1
Hub Type
Feed Through
Receptacle Type
Decorator Duplex
Self Testing
Yes
Grade
Hospital Grade
Visual Indicator Lights
Power Connected
UL 94 Flammability Rating
V-0
IP Rating
Not Rated
Phase
Single
Mount Type
Flush
AFCI
No
Flange Type
Non-Flanged
Surge Protection
No
Shrouded
Yes

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating 5, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant, Weather Resistant
