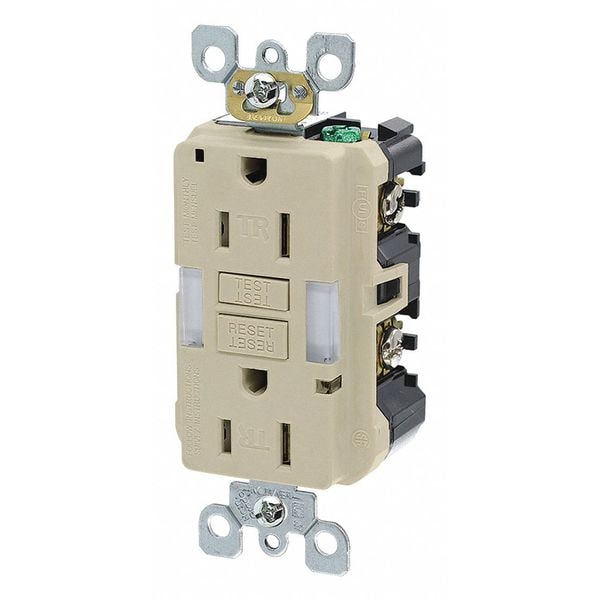

Leviton GFI Receptacle GFNL1-I - main

GFI Receptacle

  • Mfr # GFNL1-I

  • Zoro # G104392947

product price: $38.19
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNL1-I
Zoro #
G104392947
UPC #
07847771477
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Ivory
Number of Outlets
2
Housing Material
Thermoplastic
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
Surge Suppression
Yes
Outlet Type - Plugs and Receptacles
Standard Duplex
Tamper Resistant
Yes
Color - Plugs and Receptacles
Ivory
Power Indicator
Yes
Special Features
Auto-Monitoring, Custom Designed Lenses with Edge-Mounted LEDs, Dual Lens, Saves Space, Sensor Provides Automatic ON/OFF Illumination
Application Environment
Commercial
Wiring Method
Side
Wiring Method - Plugs and Receptacles
Back and Side
Color
Ivory
HP
1 hp
Type
Combination with Light
Weather Resistant - Plugs and Receptacles
No
Item - Plugs and Receptacles
GFCI Receptacle
Voltage - Plugs and Receptacles
125V
Voltage
125 VAC
Self-Testing
Yes
Mounting Type - Plugs and Receptacles
Flush
Amps - Plugs and Receptacles
15 A
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Minimum Operating Temperature
-31 Degrees F
Includes
Self Grounding Clip, Strap Material
Self Testing
Yes
Contact Material
Brass
Maximum Operating Temperature
150.8 Degrees F
Market
Commercial, Residential
Receptacle Type
Decorator Duplex
Includes Mounting Hardware
Yes
Hub Type
Feed Through
Grade
Federal Specification
Horsepower Rating
1 hp
Features
Built-In Night Light
Wire Connection Type
Screw Terminals
Visual Indicator Lights
Power Connected
Resistance Properties
Tamper Resistant
Mount Type
Flush
Voltage Rating
125V AC
Surge Protection
Yes
Feature
Self-Test
At Rated Voltage
1 HP
Operating Temperature
-35C to +66C
Fed Spec WC-596
Yes
Line Contacts
Brass Double-Wipe .031 Thick
Yoke
Zinc-Plated Steel
Trip Level
Class A, 5mA plus or minus 1mA
Strap Material
Galvanized Steel
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Pole
2
UL498
Yes
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Standards and Certifications
UL/CSA, NEMA WD6
Amperage
15 A
Torque Range
14-18 in.-lbs
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
NEMA
5-15R
Body Material
Thermoplastic
UL 943
File E48380
Terminal Accom.
14-10 AWG
Clamps
Brass
Termination
Back & Side 20A Feed-Thru
Wire
3
Terminal Screws
Plated Steel
Face Material
Thermoplastic
ANSI
C-73
CSA C22.2 No. 42
Yes
Short Circuit Current Rating
10KA
Grounding Screw
Plated Steel
CSA-C22.2 No. 144.1-06
File LR-57811

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Ivory, Housing Material Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
