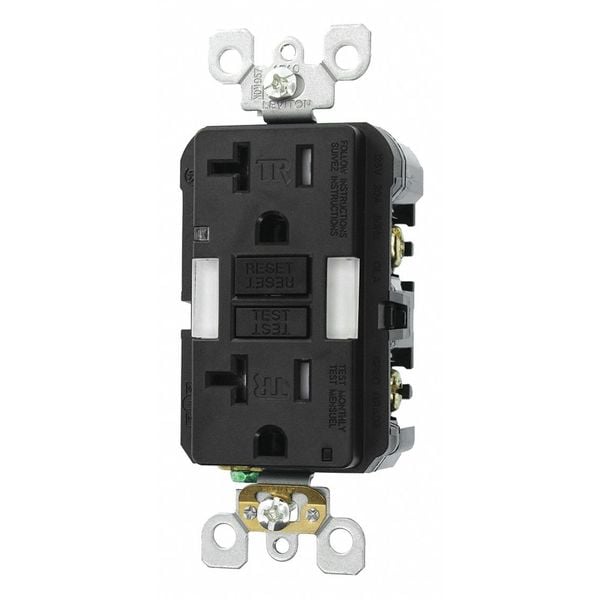

Leviton GFI Receptacle GFNL2-HGE - main

GFI Receptacle

  • Mfr # GFNL2-HGE

  • Zoro # G604392942

product price: $46.69
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
GFNL2-HGE
Zoro #
G604392942
UPC #
07847772360
Country of Origin
China

Dimensions

Overall Depth
1.4 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
1.3 in
Face Plate Width
1.8 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Black
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
Application Environment
Hospital Grade
Item - Plugs and Receptacles
GFCI Receptacle
Voltage
125 VAC
Voltage - Plugs and Receptacles
125V
HP
1 hp
Tamper Resistant
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Color
Black
Self-Testing
Yes
Special Features
Custom Designed Lenses with Edge-Mounted LEDs, Dual Lens, Saves Space, Sensor Provides Automatic ON/OFF Illumination
Color - Plugs and Receptacles
Black
Amps - Plugs and Receptacles
20 A
Surge Suppression
Yes
Wiring Method
Back, Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Duplex
Weather Resistant - Plugs and Receptacles
No
Power Indicator
Yes
Voltage Rating
125V AC
Self Testing
Yes
Includes
Strap Material
Surge Protection
Yes
Resistance Properties
Tamper Resistant
Visual Indicator Lights
Power Connected
UL 94 Flammability Rating
V-0
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-31 Degrees F
Horsepower Rating
1 hp
Maximum Operating Temperature
150.8 Degrees F
Grade
Hospital Grade Fed. Spec.
Mount Type
Flush
Wire Connection Type
Screw Terminals
Receptacle Type
Decorator Duplex
Contact Material
Brass
Amperage
20 A
Grounding Screw
Plated Steel
Terminal Clamp
Brass
ANSI
C-73
Termination
Back or Side Wire
Pole
2
Terminal Accom.
14-10 AWG solid or stranded
Short Circuit Current Rating
10kA
NEMA
WD-1 & WD-6
Device Type
Duplex Receptacle Outlet
Operating Temperature
-35C to +66C
Ground Clips
Brass
Terminal Screws
Plated Steel
Wire
3
Line Contacts
Brass
Flammability
Rated V-0 per UL 94
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Certification/Listing
UL, CSA, NOM-ANCE
Function
GFCI
Face Material
PBT
At Rated Voltage
1 HP
Strap Material
Galvanized Steel
Shutter Mechanism
Delrin® Acetal
Body Material
Polycarbonate
Feature
Tamper-Resistant|Power Indication
Screw Terminal Torque
14-18 in-lbs

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
