Shop BRYANT

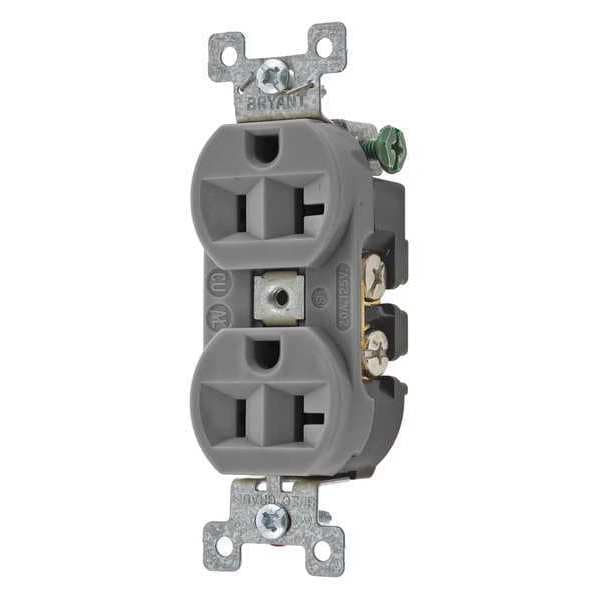

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5362BGRY
  • Zoro # G4845569
product price:
$
7.75
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5362BGRY
Zoro #
G4845569
UPC #
781786715035
Country of Origin
United States
Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Tamper Resistant
No
Weather Resistant - Plugs and Receptacles
No
NEMA Configuration
5-20
Mounting Type
Flush
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Material
Nylon
Power Indicator
No
Mounting Type - Plugs and Receptacles
Flush
Number of Gangs
1
Sub-Category
Duplex Receptacles
Outlet Type
Duplex
Voltage
125VAC
Special Features
Corrosion resistant
Corrosion Resistant
Yes
Weather Resistant
No
Application Environment
Industrial
Surge Suppression
No
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Standard Duplex
Connection Orientation
Straight
Housing Material
Composite, Thermoplastic
Includes Mounting Hardware
Yes
Maximum Operating Temperature
167 Degrees F
GFCI
No
For Location
Indoor
Grade
Federal Specification
Polarized
Yes
AFCI
No
Includes
Mounting Hardware
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1 hp
Surge Protection
No
Market
Commercial, Industrial
Cover Type
No Cover
Hub Type
Feed Through
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Wattage
2500
Nema Rating
5-20R
Application
Heavy Duty Specification Grade
Style
Finder Groove Face
Features
Slender/compact design; Finder Groove Face; Triple wipe contacts
Temperature Rating
Maximum continuous 75°C; minimum -40°C (w/o impact)
Industry Standard(s)
UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
Number of Outlets
2
Number of Wall Plates Included
0
IP Rating
IP20

Dimensions

Minimum Wire Size
12 AWG
Overall Depth
0.9 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Wire Size
#14 AWG to #12 AWG
Display Size
Standard Sized Product
Size
Standard Sized Product
Width
1.38 in
Height
0.92 in
Length
3.28 in

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Gray, Housing Material Composite, Thermoplastic/Composite, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Corrosion Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186
