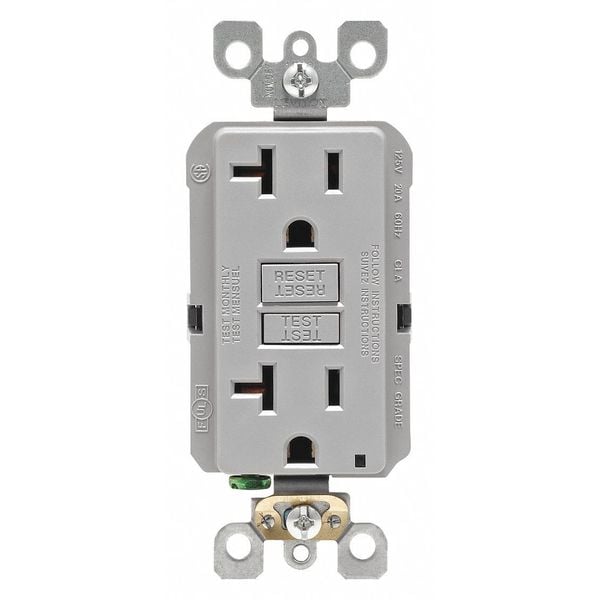

Leviton GFI Receptacle GFNT2-GY - main

GFI Receptacle

  • Mfr # GFNT2-GY

  • Zoro # G404392920

product price: $22.59
/ea

Key Features

Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNT2-GY
Zoro #
G404392920
UPC #
07847771275
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
GFI Receptacle
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Gray
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
Tamper Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Self-Testing
Yes
Item - Plugs and Receptacles
GFCI Receptacle
Type
Standard Duplex
Voltage - Plugs and Receptacles
125V
Wiring Method
Back, Side
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
Yes
Voltage
125 VAC
Color - Plugs and Receptacles
Gray
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant - Plugs and Receptacles
No
Surge Suppression
Yes
Color
Gray
Application Environment
Commercial
HP
1 hp
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Amps - Plugs and Receptacles
20 A
Market
Commercial, Residential
Includes
Faceplate, Wallplate
Hub Type
Feed Through
Maximum Operating Temperature
150.8 Degrees F
Receptacle Type
Decorator Duplex
Voltage Rating
125V AC
Grade
Federal Specification
Wire Connection Type
Screw Terminals
Horsepower Rating
1 hp
Visual Indicator Lights
Power Connected
Surge Protection
No
Mount Type
Flush
Self Testing
Yes
Includes Mounting Hardware
Yes
Contact Material
Brass
Minimum Operating Temperature
-31 Degrees F
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Strap Material
Galvanized Steel
Terminal Screws
Plated Steel
Clamps
Brass
Line Contacts
Brass Triple-Wipe .031 Thick
Wire
3
Termination
Back & Side
Wallplate
Included
Operating Temperature
-35C to +66C
Yoke
Zinc-Plated Steel
Torque Range
14-18 in.-lbs
Fed Spec WC-596
Yes
Trip Level
Class A, 5mA plus or minus 1mA
UL498
Yes
Face Material
Thermoplastic
Terminal Accom.
14-10 AWG
Feature
Self-Test
NEMA
5-20R
Grounding Screw
Plated Steel
CSA-C22.2 No. 144.1-06
File LR-57811
Short Circuit Current Rating
10KA
ANSI
C-73
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Standards and Certifications
UL/CSA, NEMA WD6, NEMA WD1
Pole
2
UL 943
File E48380
CSA C22.2 No. 42
Yes
Body Material
Polycarbonate
At Rated Voltage
1 HP
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Amperage
20 A

Description

GFI Receptacle, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color Gray, Housing Material Polycarbonate, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
