Shop All GFCI Receptacles
Leviton

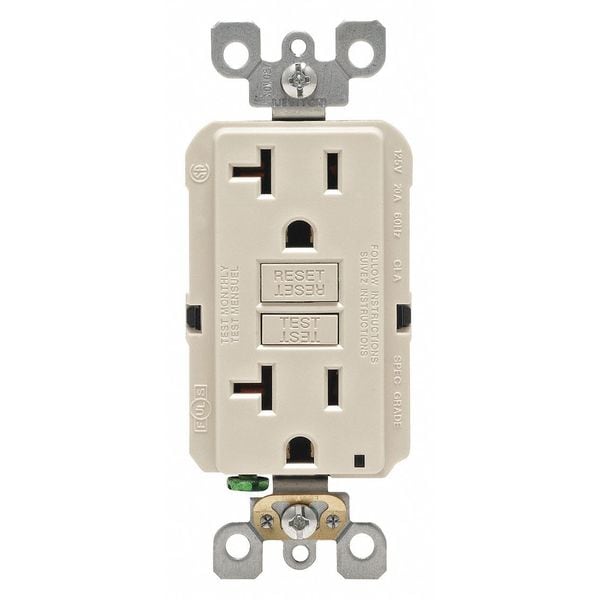

GFI Receptacle

product price: $19.99
/ea
Sold in multiples of 10 for $199.90
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Surge Suppression Yes
  • Voltage - Plugs and Receptacles 125V
  • Self-Testing Yes
  • Color - Plugs and Receptacles Light Almond
  • NEMA Configuration 5-20
See all product information

Product Information

Dimensions

Maximum Wire Size 10 AWG
Minimum Wire Size 14 AWG

Details

Surge Suppression Yes
Voltage - Plugs and Receptacles 125V
Self-Testing Yes
Item GFI Receptacle
Item - Plugs and Receptacles GFCI Receptacle
Color - Plugs and Receptacles Light Almond
NEMA Configuration 5-20
Wiring Method - Plugs and Receptacles Back and Side
Weather Resistant - Plugs and Receptacles No
Mounting Type - Plugs and Receptacles Flush
Standards CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
Outlet Type - Plugs and Receptacles Standard Duplex
Wiring Method Back, Side
HP 1 hp
Amps - Plugs and Receptacles 20 A
NEMA Receptacle Configuration - Plugs and Receptacles 5-20R
Application Environment Commercial
Special Features Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Tamper Resistant No
Power Indicator Yes
Number of Wires 3
Number of Poles 2
Current Rating 20 A
Contact Material Brass
Polarized Yes
Horsepower Rating 1 hp
Market Commercial, Residential
Receptacle Type Decorator Duplex
NEMA Receptacle Configuration 5-20R
Wire Connection Type Screw Terminals
Grounding Grounded
Primary Resistance Properties 20 A
Grade Federal Specification
Housing Color Light Almond
Wire Connection Types Screw Terminals
Number of Poles & Wires 2 Pole / 3 Wire
Visual Indicator Lights Power Connected
Includes Mounting Hardware Yes
Includes Faceplate, Wallplate
Mount Type Flush
Number of Outlets 2
Surge Protection No
Self Testing Yes
Additional Electrical Protection GFCI, Surge Protection
Key Resistance Properties Standard Resistance
Cover Type No Cover
Housing Material Polycarbonate
Maximum Operating Temperature 150.8 Degrees F
Phase Single
GFCI Yes
Voltage Rating 125V AC
Minimum Operating Temperature -31 Degrees F
Hub Type Feed Through

Description

GFI Receptacle, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color Light Almond, Housing Material Polycarbonate, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
