Shop LEVITON

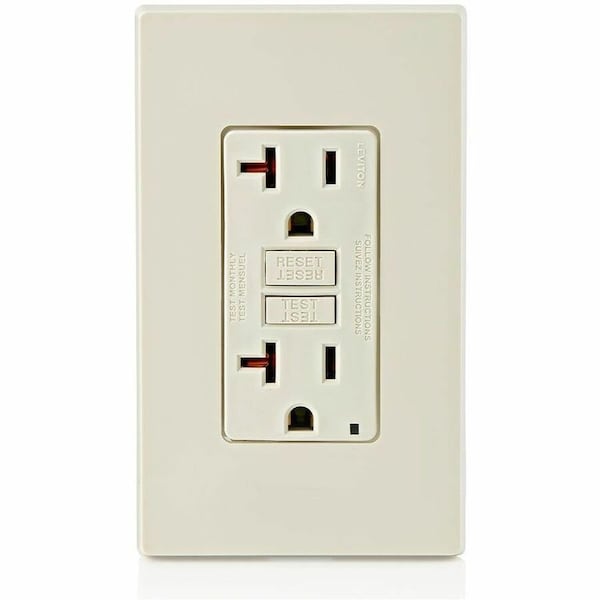

GFIRcptcl, 20A, 125VAC, Almnd, Polycarb

  • Mfr # GFNT2-T

  • Zoro # G804392933

product price:  $23.69
/ea

Key Features

Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GFNT2-T
Zoro #
G804392933
UPC #
07847771278
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
GFI Receptacle
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Light Almond
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
Surge Suppression
Yes
Voltage - Plugs and Receptacles
125V
Self-Testing
Yes
Item - Plugs and Receptacles
GFCI Receptacle
Color - Plugs and Receptacles
Light Almond
Wiring Method - Plugs and Receptacles
Back and Side
Weather Resistant - Plugs and Receptacles
No
Mounting Type - Plugs and Receptacles
Flush
Outlet Type - Plugs and Receptacles
Standard Duplex
Wiring Method
Back/Side
HP
1 hp
Amps - Plugs and Receptacles
20 A
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Commercial
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Tamper Resistant
No
Power Indicator
Yes
Contact Material
Brass
Horsepower Rating
1 hp
Market
Commercial, Residential
Receptacle Type
Decorator Duplex
Wire Connection Type
Screw Terminals
Grade
Federal Specification
Visual Indicator Lights
Power Connected
Includes Mounting Hardware
Yes
Includes
Faceplate, Wallplate
Mount Type
Flush
Surge Protection
No
Self Testing
Yes
Maximum Operating Temperature
150.8 Degrees F
Voltage Rating
125V AC
Minimum Operating Temperature
-31 Degrees F
Number of Gangs
1
NEMA Enclosure Rating
Not Rated
Status Indicator Lights
Power Connected
Flange Type
Non-Flanged
IP Rating
Not Rated
Shrouded
No
AFCI
No
Number of Wall Plates Included
1

Description

GFI Receptacle, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color Light Almond, Housing Material Polycarbonate, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
