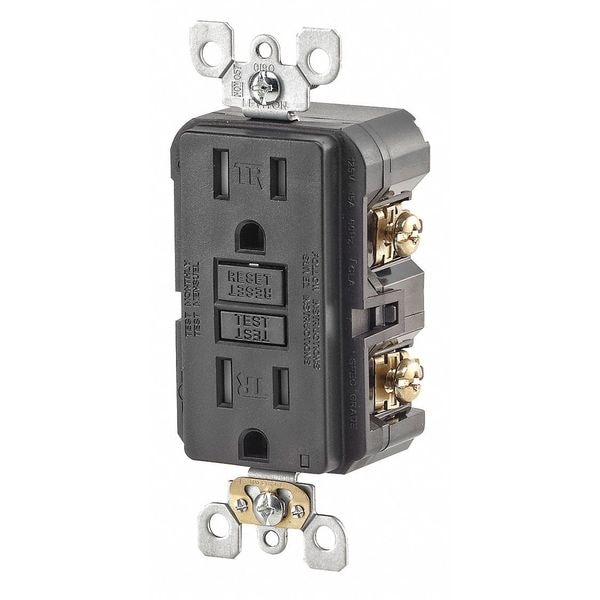

Leviton GFI Receptacle GFTR1-E - main

GFI Receptacle

  • Mfr # GFTR1-E

  • Zoro # G004392894

product price: $22.19
/ea

Key Features

Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTR1-E
Zoro #
G004392894
UPC #
07847748715
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Black
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
HP
1 hp
Self-Testing
Yes
Application Environment
Commercial
Weather Resistant - Plugs and Receptacles
No
Wiring Method - Plugs and Receptacles
Back and Side
Voltage
125 VAC
Amps - Plugs and Receptacles
15 A
Wiring Method
Back, Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Voltage - Plugs and Receptacles
125V
Power Indicator
Yes
Outlet Type - Plugs and Receptacles
Standard Duplex
Mounting Type - Plugs and Receptacles
Flush
Type
Standard Duplex
Color - Plugs and Receptacles
Black
Item - Plugs and Receptacles
GFCI Receptacle
Tamper Resistant
Yes
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Surge Suppression
Yes
Color
Black
Contact Material
Brass
Wire Connection Type
Screw Terminals
Resistance Properties
Tamper Resistant
Voltage Rating
125V AC
Surge Protection
No
Market
Commercial
Hub Type
Feed Through
Includes
Faceplate, Wallplate
Receptacle Type
Decorator Duplex
Minimum Operating Temperature
-31 Degrees F
Horsepower Rating
1 hp
Grade
Federal Specification
Maximum Operating Temperature
150.8 Degrees F
Includes Mounting Hardware
Yes
Visual Indicator Lights
Power Connected
Mount Type
Flush
Self Testing
Yes
Fed Spec WC-596
Yes
Yoke
Zinc-Plated Steel
NEMA
5-15R
Flammability
Rated V-2 per UL 94
Wire
3
CSA C22.2 No. 42
Yes
Terminal Accom.
14-10 AWG
Line Contacts
Brass Double Wipe .031 Thick
Grounding Screw
Plated Steel
Standards and Certifications
UL/CSA, NEMA WD6
UL498
Yes
CSA-C22.2 No. 144.1-06
File LR-57811
Body Material
Polycarbonate
ANSI
C-73
Wallplate
Included
Face Material
Thermoplastic
Trip Level
Class A, 5mA plus or minus 1mA
Operating Temperature
-35C to +66C
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Strap Material
Galvanized Steel
Pole
2
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Terminal Screws
Plated Steel
UL 943
File E48380
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Clamps
Brass
Amperage
15 A
Termination
Back & Side
At Rated Voltage
1 HP
Torque Range
14-18 in.-lbs
Feature
Self-Test
Short Circuit Current Rating
10KA

Description

GFI Receptacle, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Black, Housing Material Polycarbonate, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
