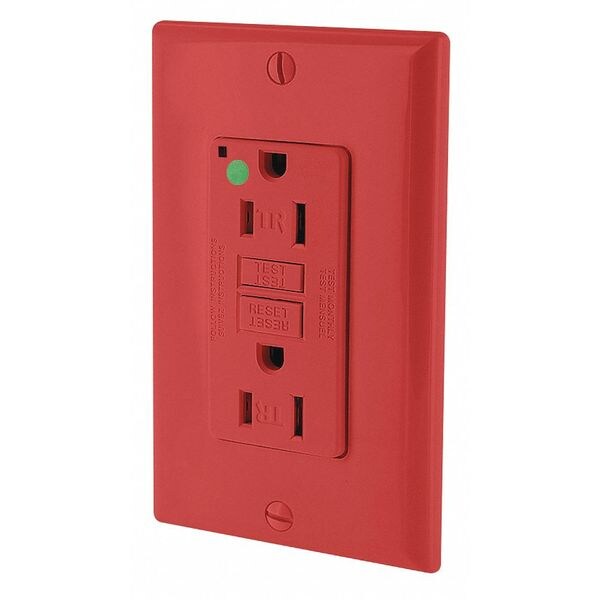

Leviton GFI Receptacle GFTR1-HGR - main

GFI Receptacle

  • Mfr # GFTR1-HGR

  • Zoro # G104392800

product price: $32.59
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
GFTR1-HGR
Zoro #
G104392800
UPC #
07847772381
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Number of Outlets
2
Housing Color
Red
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NOM-ANCE, UL 498, UL 943, UL Listed
Outlet Type - Plugs and Receptacles
Duplex
Color - Plugs and Receptacles
Red
Voltage
125 VAC
Application Environment
Hospital Grade
Voltage - Plugs and Receptacles
125V
Wiring Method
Back, Side
Color
Red
Surge Suppression
Yes
Weather Resistant - Plugs and Receptacles
No
Wiring Method - Plugs and Receptacles
Back and Side
Amps - Plugs and Receptacles
15 A
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Tamper Resistant
Yes
Item - Plugs and Receptacles
GFCI Receptacle
HP
1 hp
Special Features
Cold Impact Resistance, UV Stabilized Plastics
Power Indicator
Yes
Self-Testing
Yes
Includes Mounting Hardware
Yes
Grade
Hospital Grade Fed. Spec.
UL 94 Flammability Rating
V-0
Minimum Operating Temperature
-31 Degrees F
Resistance Properties
Tamper Resistant
Hub Type
Feed Through
Maximum Operating Temperature
150.8 Degrees F
Self Testing
Yes
Visual Indicator Lights
Power Connected
Voltage Rating
125V AC
Surge Protection
Yes
Wire Connection Type
Screw Terminals
Mount Type
Flush
Includes
Wallplate
Horsepower Rating
1 hp
Contact Material
Brass
Receptacle Type
Decorator Duplex
Face Material
PBT
Body Material
Polycarbonate
Flammability
Rated V-0 per UL 94
Wire
3
Certification/Listing
UL, CSA, NOM-ANCE
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Shutter Mechanism
Delrin® Acetal
Amperage
15 A & 20 A Feed-Through
Device Type
Duplex Receptacle Outlet
Terminal Screws
Plated Steel
Feature
Wallplate Include, Tamper-Resistant, Power Indication
Screw Terminal Torque
14-18 in-lbs
Termination
Back or Side Wire
NEMA
WD-1 & WD-6
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Pole
2
Grounding Screw
Plated Steel
Ground Clips
Brass
Short Circuit Current Rating
10kA
Strap Material
Galvanized Steel
At Rated Voltage
1 HP
Terminal Clamp
Brass
ANSI
C-73
Function
GFCI
Operating Temperature
-35C to +66C
Line Contacts
Brass
Terminal Accom.
14-10 AWG solid or stranded

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
