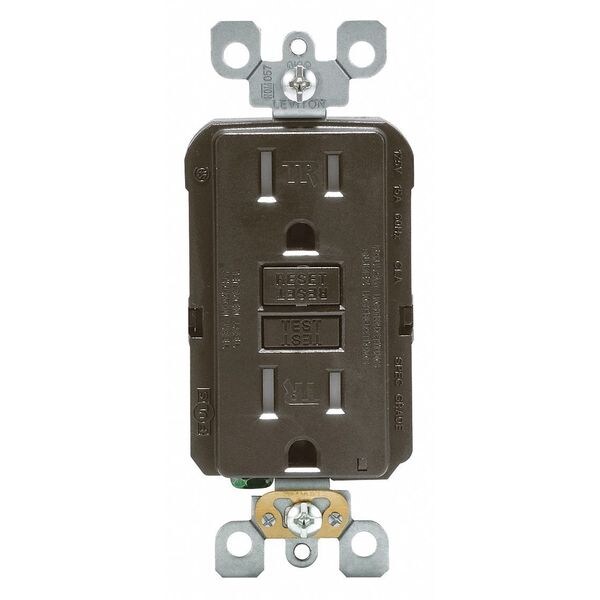

Leviton GFI Receptacle GFTR1 - main

GFI Receptacle

  • Mfr # GFTR1

  • Zoro # G304392891

product price: $22.89
/ea

Key Features

Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
Grounding
Grounded
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTR1
Zoro #
G304392891
UPC #
07847748712
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Number of Outlets
2
Housing Color
Brown
Housing Material
Polycarbonate
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
Color
Brown
Surge Suppression
Yes
Amps - Plugs and Receptacles
15 A
Outlet Type - Plugs and Receptacles
Standard Duplex
HP
1 hp
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Self-Testing
Yes
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Voltage - Plugs and Receptacles
125V
Application Environment
Commercial
Color - Plugs and Receptacles
Brown
Wiring Method - Plugs and Receptacles
Back and Side
Voltage
125 VAC
Type
Standard Duplex
Wiring Method
Back, Side
Tamper Resistant
Yes
Weather Resistant - Plugs and Receptacles
No
Item - Plugs and Receptacles
GFCI Receptacle
Contact Material
Brass
Horsepower Rating
1 hp
Wire Connection Type
Screw Terminals
Grade
Federal Specification
Surge Protection
No
Maximum Operating Temperature
150.8 Degrees F
Market
Commercial
Visual Indicator Lights
Power Connected
Receptacle Type
Decorator Duplex
Minimum Operating Temperature
-31 Degrees F
Resistance Properties
Tamper Resistant
Self Testing
Yes
Includes
Faceplate, Wallplate
Voltage Rating
125V AC
Mount Type
Flush
Hub Type
Feed Through
Includes Mounting Hardware
Yes
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Terminal Screws
Plated Steel
Body Material
Polycarbonate
Terminal Accom.
14-10 AWG
Grounding Screw
Plated Steel
Yoke
Zinc-Plated Steel
Flammability
Rated V-2 per UL 94
Line Contacts
Brass Double Wipe .031 Thick
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Fed Spec WC-596
Yes
Wire
3
Face Material
Thermoplastic
CSA-C22.2 No. 144.1-06
File LR-57811
Wallplate
Included
CSA C22.2 No. 42
Yes
Torque Range
14-18 in.-lbs
Standards and Certifications
UL/CSA, NEMA WD6
ANSI
C-73
UL498
Yes
At Rated Voltage
1 HP
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
UL 943
File E48380
Short Circuit Current Rating
10KA
Termination
Back & Side
Trip Level
Class A, 5mA plus or minus 1mA
Strap Material
Galvanized Steel
Feature
Self-Test
NEMA
5-15R
Clamps
Brass
Amperage
15 A
Pole
2
Operating Temperature
-35C to +66C

Description

GFI Receptacle, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Brown, Housing Material Polycarbonate, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
