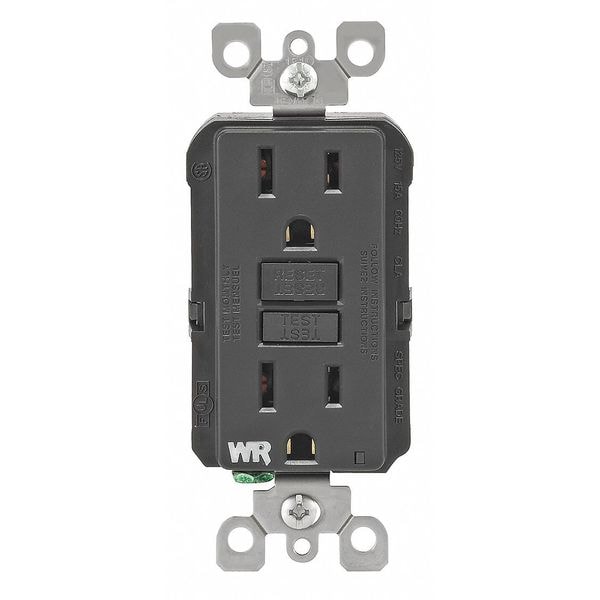

Leviton GFI Receptacle GFWR1-E - main

GFI Receptacle

  • Mfr # GFWR1-E

  • Zoro # G904392994

product price: $30.99
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFWR1-E
Zoro #
G904392994
UPC #
07847770910
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.8 in
Overall Depth
1 in
Face Plate Height
2.7 in

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Black
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
No
Standards
ANSI, CSA Certified, Federal Specification, MIL-SPEC, NOM Certified, RoHS Compliant, UL Listed
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Application Environment
Commercial
Amps - Plugs and Receptacles
15 A
Power Indicator
Yes
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Mounting Type - Plugs and Receptacles
Flush
Outlet Type - Plugs and Receptacles
Standard Duplex
Wiring Method - Plugs and Receptacles
Back and Side
HP
1 hp
Color
Black
Color - Plugs and Receptacles
Black
Self-Testing
Yes
Weather Resistant
Yes
Tamper Resistant
No
Voltage - Plugs and Receptacles
125V
Reset Type
Automatic
Surge Suppression
Yes
Voltage
125 VAC
Wiring Method
Back, Side
Item - Plugs and Receptacles
GFCI Receptacle
Type
GFCI
Weather Resistant - Plugs and Receptacles
Yes
Visual Indicator Lights
Power Connected
Contact Material
Brass
Market
Commercial, Residential
Hub Type
Feed Through
Receptacle Type
Decorator Duplex
Horsepower Rating
1 hp
Voltage Rating
125V AC
For Location
Outdoor
Grade
Federal Specification
Wire Connection Type
Screw Terminals
Resistance Properties
Impact Resistant, Weather Resistant
Includes Mounting Hardware
Yes
Reverse Service
Yes
Mount Type
Flush
Maximum Operating Temperature
150.8 Degrees F
Minimum Operating Temperature
-31 Degrees F
Self Testing
Yes
Surge Protection
Yes
Feature
Self-Test
Pole
2
Grounding Screw
Stainless Steel
Line Contacts
Brass Double Wipe .031 Thick
ANSI
C-73
Body Material
Polycarbonate
NEMA
5-15R
CSA-C22.2 No. 144.1-06
File LR-57811
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
At Rated Voltage
1 HP
Wire
3
Trip Level
Class A, 5mA plus or minus 1mA
Clamps
Brass
Fed Spec WC-596
Yes
Terminal Screws
Stainless Steel
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Amperage
15 A
Standards and Certifications
UL/CSA, NEMA WD6
UL 943
File E48380
Face Material
Polypropylene
Termination
Back & Side
Operating Temperature
-35C to +66C
UL498
Yes
Short Circuit Current Rating
10KA
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.
14-10 AWG
Yoke
Stainless Steel
Strap Material
Stainless Steel

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Black, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Decorator Duplex, Resistance Properties Impact Resistant, Weather Resistant
