Shop LEVITON

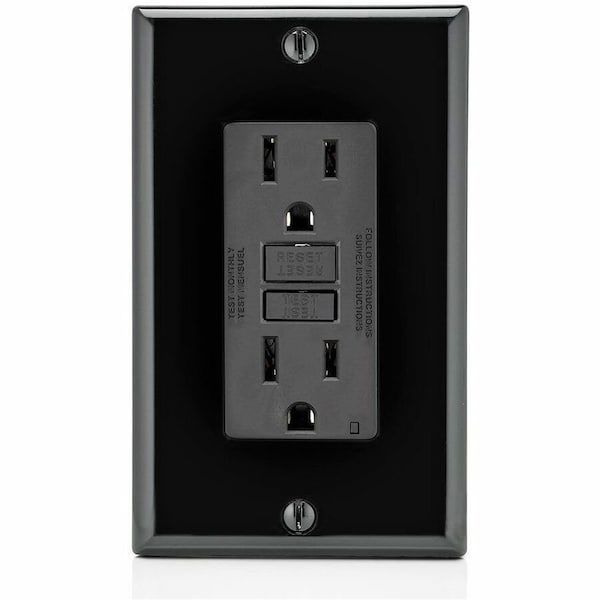

GFIRcptcl, 15A, 125VAC, Blk, Polycarbonate

  • Mfr # GFNT1-E

  • Zoro # G316525331

product price:
$
20.79
/ea

Key Features

Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Grounding
Grounded
Housing Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GFNT1-E
Zoro #
G316525331
UPC #
07847771257
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
GFI Receptacle
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Grounding
Grounded
Housing Color
Black
Housing Material
Polycarbonate
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
Mount Type
Flush
Receptacle Type
Decorator Duplex
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-31 Degrees F
Voltage - Plugs and Receptacles
125V
Maximum Operating Temperature
150.8 Degrees F
Includes Mounting Hardware
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Market
Commercial, Residential
Horsepower Rating
1 hp
Amps - Plugs and Receptacles
15 A
Outlet Type - Plugs and Receptacles
Standard Duplex
Number of Outlets
2
Includes
Strap Material
Self Testing
Yes
Grade
Federal Specification
Color - Plugs and Receptacles
Black
Wiring Method - Plugs and Receptacles
Back and Side
Visual Indicator Lights
Power Connected
Voltage Rating
125V AC
Surge Suppression
Yes
Item - Plugs and Receptacles
GFCI Receptacle
Tamper Resistant
No
HP
1 hp
Application Environment
Commercial
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Surge Protection
No
Weather Resistant - Plugs and Receptacles
No
Power Indicator
Yes
Self-Testing
Yes
Wiring Method
Side
Mounting Type - Plugs and Receptacles
Flush
Phase
Single
Contact Material
Brass
Features
Built-In Night Light
Status Indicator Lights
Power Connected
Number of Wall Plates Included
0
IP Rating
Not Rated
Shrouded
No
AFCI
No
Flange Type
Non-Flanged
NEMA Enclosure Rating
Not Rated
Number of Gangs
1

Description

GFI Receptacle, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
