Shop LEVITON

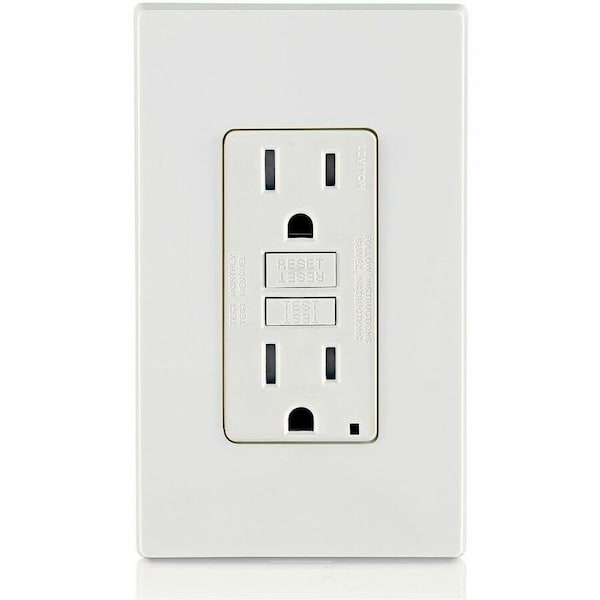

GFIRcptcl, 15A, 125VAC, Wht, Polycarbonate

  • Mfr # GFTR1-W

  • Zoro # G204392809

product price:  $22.59
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GFTR1-W
Zoro #
G204392809
UPC #
07847747971
Country of Origin
China

Dimensions

Overall Depth
1 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Number of Outlets
2
Housing Color
White
Housing Material
Polycarbonate
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI, CSA Certified, Federal Specification, MIL-SPEC, NOM Certified, RoHS Compliant, UL Listed
Reset Type
Automatic
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Wiring Method
Back/Side
Self-Testing
Yes
Voltage
125 VAC
Weather Resistant - Plugs and Receptacles
No
Surge Suppression
Yes
Amps - Plugs and Receptacles
15 A
Item - Plugs and Receptacles
GFCI Receptacle
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Tamper Resistant
Yes
Type
Standard Duplex
Voltage - Plugs and Receptacles
125V
Color - Plugs and Receptacles
White
Outlet Type - Plugs and Receptacles
Standard Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Color
White
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
Yes
Application Environment
Commercial
HP
1 hp
Self Testing
Yes
Minimum Operating Temperature
-31 Degrees F
Wire Connection Type
Screw Terminals
Horsepower Rating
1 hp
Includes
Faceplate, Screws, Self Grounding Clip, Wallplate
Resistance Properties
Tamper Resistant
UL 94 Flammability Rating
V-2
Surge Protection
No
Visual Indicator Lights
Power Connected
Grade
Federal Specification
Contact Material
Brass
Reverse Service
Yes
Receptacle Type
Decorator Duplex
Market
Commercial, Residential
Voltage Rating
125V AC
Mount Type
Flush
Includes Mounting Hardware
Yes
Maximum Operating Temperature
150.8 Degrees F
Body Material
Polycarbonate
Strap Material
Galvanized Steel
CSA-C22.2 No. 144.1-06
File LR-57811
Operating Temperature
-35C to +66C
Short Circuit Current Rating
10KA
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
UL498
Yes
Grounding Screw
Plated Steel
UL 943
File E48380
Feature
Self-Test
Pole
2
Amperage
15 A
Wire
3
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Standards and Certifications
UL/CSA, NEMA WD6, NEMA WD1
Face Material
Thermoplastic
Clamps
Brass
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.
14-10 AWG
Termination
Back & Side
Trip Level
Class A, 5mA plus or minus 1mA
Flammability
Rated V-2 per UL 94
Fed Spec WC-596
Yes
Terminal Screws
Plated Steel
NEMA
5-15R
At Rated Voltage
1 HP
Torque Range
14-18 in.-lbs
Wallplate
Included
ANSI
C-73
Yoke
Zinc-Plated Steel
CSA C22.2 No. 42
Yes
Line Contacts
Brass Double Wipe .031 Thick
Shrouded
No
IP Rating
Not Rated
Number of Gangs
1
NEMA Enclosure Rating
Not Rated
Status Indicator Lights
Power Connected
AFCI
No
Flange Type
Non-Flanged
Number of Wall Plates Included
0

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color White, Housing Material Polycarbonate, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant, Standards ANSI, CSA Certified, Federal Specification, MIL-SPEC, NOM Certified, RoHS Compliant, UL Listed, Voltage Rating 125V AC
