  6. GFIRcptcl, 20A, 125VAC, Blk, Polycarbonate

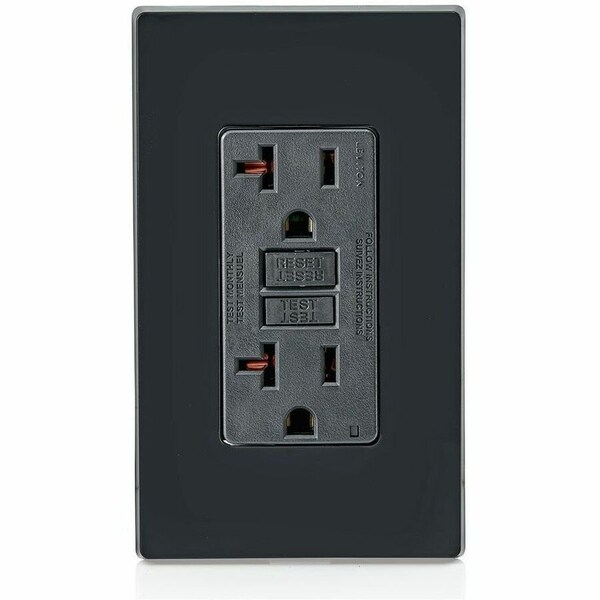

Leviton GFIRcptcl, 20A, 125VAC, Blk, Polycarbonate GFNT2-E - main
Shop LEVITON

GFIRcptcl, 20A, 125VAC, Blk, Polycarbonate

  • Mfr # GFNT2-E

  • Zoro # G304392914

product price:  $22.69
/ea

Key Features

Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNT2-E
Zoro #
G304392914
UPC #
07847773341
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
GFI Receptacle
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Number of Outlets
2
Housing Color
Black
Housing Material
Polycarbonate
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
Tamper Resistant
No
Weather Resistant - Plugs and Receptacles
No
Application Environment
Commercial
Color
Black
Amps - Plugs and Receptacles
20 A
Wiring Method - Plugs and Receptacles
Back and Side
Surge Suppression
Yes
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Item - Plugs and Receptacles
GFCI Receptacle
HP
1 hp
Type
Standard Duplex
Voltage - Plugs and Receptacles
125V
Power Indicator
Yes
Self-Testing
Yes
Voltage
125 VAC
Wiring Method
Back, Side
Outlet Type - Plugs and Receptacles
Standard Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Color - Plugs and Receptacles
Black
Mounting Type - Plugs and Receptacles
Flush
Minimum Operating Temperature
-31 Degrees F
Includes
Faceplate, Wallplate
Surge Protection
No
Visual Indicator Lights
Power Connected
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
150.8 Degrees F
Self Testing
Yes
Receptacle Type
Decorator Duplex
Grade
Federal Specification
Voltage Rating
125V AC
Mount Type
Flush
Includes Mounting Hardware
Yes
Hub Type
Feed Through
Horsepower Rating
1 hp
Market
Commercial, Residential
Contact Material
Brass
Pole
2
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Line Contacts
Brass Triple-Wipe .031 Thick
Termination
Back & Side
Body Material
Polycarbonate
Short Circuit Current Rating
10KA
NEMA
5-20R
CSA C22.2 No. 42
Yes
Clamps
Brass
Wire
3
Trip Level
Class A, 5mA plus or minus 1mA
UL 943
File E48380
Standards and Certifications
UL/CSA, NEMA WD6
Feature
Self-Test
Wallplate
Included
Operating Temperature
-35C to +66C
UL498
Yes
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
ANSI
C-73
Yoke
Zinc-Plated Steel
At Rated Voltage
1 HP
CSA-C22.2 No. 144.1-06
File LR-57811
Amperage
20 A
Grounding Screw
Plated Steel
Terminal Accom.
14-10 AWG
Torque Range
14-18 in.-lbs
Face Material
Thermoplastic
Fed Spec WC-596
Yes
Terminal Screws
Plated Steel
Strap Material
Galvanized Steel
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06

Description

GFI Receptacle, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
