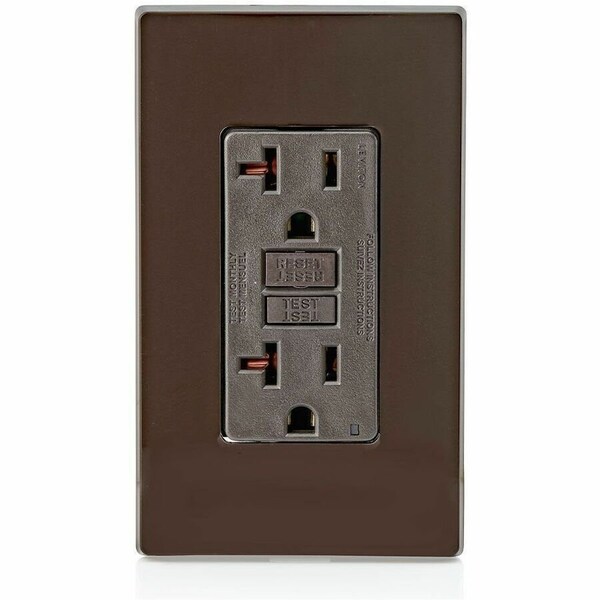

Leviton GFIRcptcl, 20A, 125VAC, Brn, Polycarbonate GFNT2 - main

GFIRcptcl, 20A, 125VAC, Brn, Polycarbonate

  • Mfr # GFNT2

  • Zoro # G216525332

product price:  $21.95
/ea

Key Features

Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Grounding
Grounded
Housing Color
Brown
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GFNT2
Zoro #
G216525332
UPC #
07847771273
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
GFI Receptacle
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Grounding
Grounded
Housing Color
Brown
Housing Material
Polycarbonate
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
Power Indicator
Yes
Maximum Operating Temperature
150.8 Degrees F
Phase
Single
Grade
Federal Specification
Voltage - Plugs and Receptacles
125V
Voltage Rating
125V AC
Color - Plugs and Receptacles
Brown
Horsepower Rating
1 hp
Outlet Type - Plugs and Receptacles
Standard Duplex
Contact Material
Brass
Visual Indicator Lights
Power Connected
Wiring Method
Back, Side
Hub Type
Feed Through
Item - Plugs and Receptacles
GFCI Receptacle
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Tamper Resistant
No
Surge Suppression
Yes
HP
1 hp
Weather Resistant - Plugs and Receptacles
No
Self Testing
Yes
Number of Outlets
2
Surge Protection
No
Minimum Operating Temperature
-31 Degrees F
Self-Testing
Yes
Includes Mounting Hardware
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type - Plugs and Receptacles
Flush
Market
Commercial, Residential
Receptacle Type
Decorator Duplex
Wire Connection Type
Screw Terminals
Includes
Faceplate, Nylon Wallplate
Amps - Plugs and Receptacles
20 A
Application Environment
Commercial
Mount Type
Flush

Description

GFI Receptacle, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
