- MFR #
- GFTR2-HG
- Zoro #
- G704392798
- UPC #
- 07847772374
- Country of Origin
- China

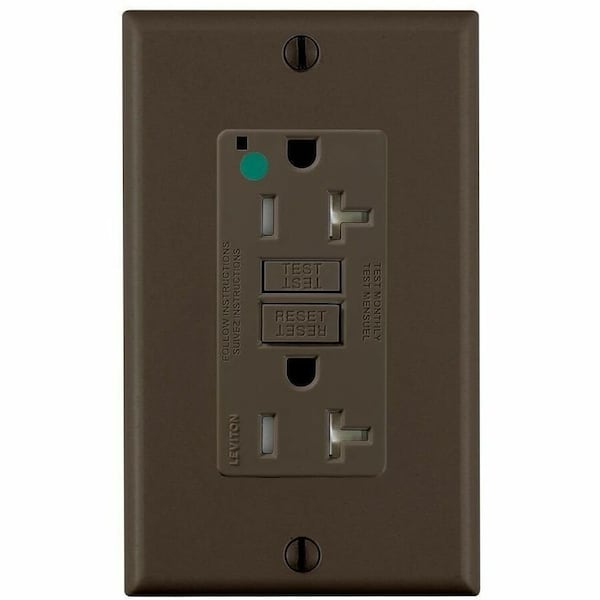

- Item
- GFI Receptacle
- Connection Orientation
- Straight
- Cover Type
- No Cover
- Current Rating
- 20 A
- Phase
- Single
- GFCI
- Yes
- Grounding
- Grounded
- Housing Color
- Brown
- Number of Outlets
- 2
- Housing Material
- Polycarbonate
- NEMA Enclosure Rating
- Not Rated
- NEMA Receptacle Configuration
- 5-20R
- Number of Poles
- 2
- Number of Wires
- 3
- Polarized
- Yes
- Standards
- ANSI, CSA Certified, Federal Specification, NOM-ANCE, RoHS Compliant, UL Listed
- Color - Plugs and Receptacles
- Brown
- Color
- Brown
- Tamper Resistant
- Yes
- Surge Suppression
- Yes
- Special Features
- Cold Impact Resistance, UV Stabilized Plastics
- Wiring Method - Plugs and Receptacles
- Back and Side
- Weather Resistant - Plugs and Receptacles
- No
- Self-Testing
- Yes
- Application Environment
- Hospital Grade
- Power Indicator
- Yes
- Voltage - Plugs and Receptacles
- 125V
- Wiring Method
- Back/Side
- Outlet Type - Plugs and Receptacles
- Duplex
- Voltage
- 125 VAC
- Amps - Plugs and Receptacles
- 20 A
- HP
- 1 hp
- Item - Plugs and Receptacles
- GFCI Receptacle
- NEMA Receptacle Configuration - Plugs and Receptacles
- 5-20R
- Includes Mounting Hardware
- Yes
- Resistance Properties
- Tamper Resistant
- Visual Indicator Lights
- Power Connected
- Contact Material
- Brass
- Surge Protection
- Yes
- Horsepower Rating
- 1 hp
- Includes
- Wallplate
- Mount Type
- Flush
- UL 94 Flammability Rating
- V-0
- Minimum Operating Temperature
- -31 Degrees F
- Voltage Rating
- 125V AC
- Receptacle Type
- Decorator Duplex
- Self Testing
- Yes
- Maximum Operating Temperature
- 150.8 Degrees F
- Grade
- Hospital Grade Fed. Spec.
- Wire Connection Type
- Screw Terminals
- Terminal Screws
- Plated Steel
- Operating Temperature
- -35C to +66C
- Certification/Listing
- UL, CSA, NOM-ANCE
- Function
- GFCI
- Terminal Clamp
- Brass
- NEMA
- WD-1 & WD-6
- Pole
- 2
- ANSI
- C-73
- Feature
- Wallplate Included|Tamper-Resistant|Power Indication
- Flammability
- Rated V-0 per UL 94
- Shutter Mechanism
- Delrin® Acetal
- Applicable Standards
- UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
- Termination
- Back or Side Wire
- Strap Material
- Galvanized Steel
- Body Material
- Polycarbonate
- Line Contacts
- Brass
- Wire
- 3
- Amperage
- 20 A
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Screw Terminal Torque
- 14-18 in-lbs
- Face Material
- PBT
- At Rated Voltage
- 1 HP
- Device Type
- Duplex Receptacle Outlet
- Grounding Screw
- Plated Steel
- Terminal Accom.
- 14-10 AWG solid or stranded
- Ground Clips
- Brass
- Short Circuit Current Rating
- 10kA
- Trip Level
- Class A, 5mA plus or minus 1mA
- Number of Gangs
- 1
- Number of Wall Plates Included
- 0
- AFCI
- No
- Flange Type
- Non-Flanged
- IP Rating
- Not Rated
- Shrouded
- No
- Status Indicator Lights
- Power Connected
