Shop LEVITON

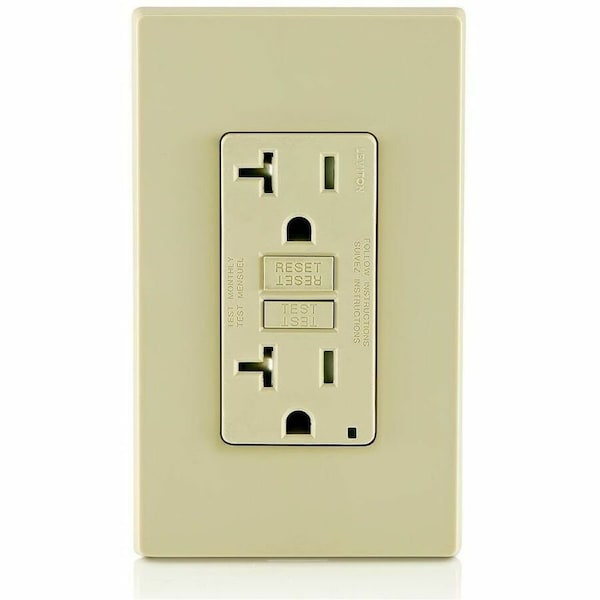

GFIRcptcl, 20A, 125VAC, Ivory, Polycarbonate

  • Mfr # GFTR2-I

  • Zoro # G504392929

product price:
$
25.99
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GFTR2-I
Zoro #
G504392929
UPC #
07847749730
Country of Origin
China

Dimensions

Face Plate Width
1.3 in
Overall Depth
1 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Ivory
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
No
Standards
ANSI, CSA Certified, Federal Specification, MIL-SPEC, NOM Certified, RoHS Compliant, UL Listed
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Tamper Resistant
Yes
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Color
Ivory
Reset Type
Automatic
Application Environment
Commercial
Self-Testing
Yes
Color - Plugs and Receptacles
Ivory
Mounting Type - Plugs and Receptacles
Flush
Outlet Type - Plugs and Receptacles
Standard Duplex
Item - Plugs and Receptacles
GFCI Receptacle
Type
Standard Duplex
Surge Suppression
Yes
Wiring Method
Back/Side
Weather Resistant - Plugs and Receptacles
No
Wiring Method - Plugs and Receptacles
Back and Side
Voltage - Plugs and Receptacles
125V
Power Indicator
Yes
Voltage
125 VAC
Amps - Plugs and Receptacles
20 A
HP
1 hp
Contact Material
Brass
Minimum Operating Temperature
-31 Degrees F
Horsepower Rating
1 hp
Self Testing
Yes
Grade
Federal Specification
Reverse Service
Yes
Voltage Rating
125V AC
Visual Indicator Lights
Power Connected
Receptacle Type
Decorator Duplex
Includes Mounting Hardware
Yes
Market
Commercial, Residential
Maximum Operating Temperature
150.8 Degrees F
Surge Protection
No
Mount Type
Flush
Includes
Faceplate, Screws, Self Grounding Clip, Wallplate
Wire Connection Type
Screw Terminals
UL 94 Flammability Rating
V-2
Resistance Properties
Tamper Resistant
Face Material
Thermoplastic
Termination
Back & Side
Wallplate
Included
UL498
Yes
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Terminal Accom.
14-10 AWG
Strap Material
Galvanized Steel
Wire
3
Operating Temperature
-35C to +66C
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Torque Range
14-18 in.-lbs
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
NEMA
5-20R
CSA-C22.2 No. 144.1-06
File LR-57811
Terminal Screws
Plated Steel
Amperage
20 A
Body Material
Polycarbonate
Grounding Screw
Plated Steel
At Rated Voltage
1 HP
ANSI
C-73
Short Circuit Current Rating
10KA
Clamps
Brass
UL 943
File E48380
Line Contacts
Brass Triple-Wipe
CSA C22.2 No. 42
Yes
Standards and Certifications
UL/CSA, NEMA WD6
Flammability
Rated V-2 per UL 94
Yoke
Zinc-Plated Steel
Trip Level
Class A, 5mA plus or minus 1mA
Fed Spec WC-596
Yes
Pole
2
Feature
Self-Test
Status Indicator Lights
Power Connected
Flange Type
Non-Flanged
Number of Wall Plates Included
0
Shrouded
No
AFCI
No
IP Rating
Not Rated
Number of Gangs
1

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
