- MFR #
- GFNL2-W
- Zoro #
- G404392937
- UPC #
- 07847771485
- Country of Origin
- China

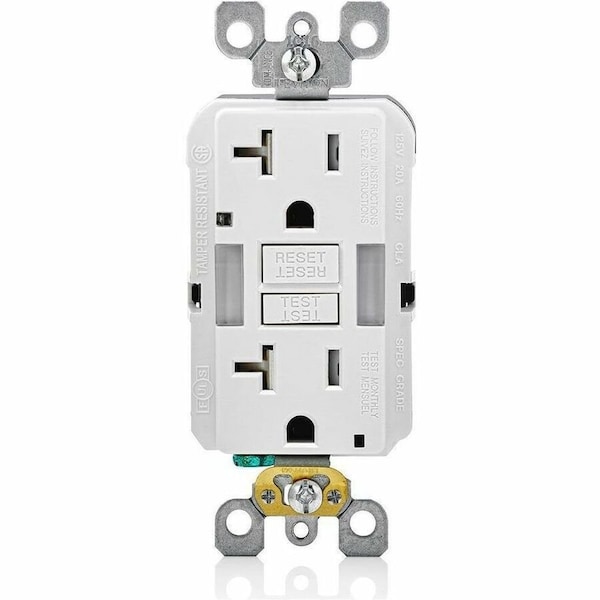

- Item
- GFI Receptacle
- Cover Type
- No Cover
- Current Rating
- 20 A
- GFCI
- Yes
- Phase
- Single
- Grounding
- Grounded
- Number of Outlets
- 2
- Housing Color
- White
- Housing Material
- Thermoplastic
- NEMA Receptacle Configuration
- 5-20R
- Number of Poles
- 2
- Number of Wires
- 3
- Polarized
- Yes
- Standards
- CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
- Power Indicator
- Yes
- Voltage - Plugs and Receptacles
- 125V
- Tamper Resistant
- Yes
- NEMA Configuration
- 5-20
- Self-Testing
- Yes
- Color - Plugs and Receptacles
- White
- Weather Resistant - Plugs and Receptacles
- No
- Voltage
- 125 VAC
- Outlet Type - Plugs and Receptacles
- Standard Duplex
- NEMA Receptacle Configuration - Plugs and Receptacles
- 5-20R
- Surge Suppression
- Yes
- HP
- 1 hp
- Item - Plugs and Receptacles
- GFCI Receptacle
- Type
- Combination with Light
- Wiring Method - Plugs and Receptacles
- Back and Side
- Application Environment
- Commercial
- Special Features
- Auto-Monitoring, Custom Designed Lenses with Edge-Mounted LEDs, Dual Lens, Saves Space, Sensor Provides Automatic ON/OFF Illumination
- Amps - Plugs and Receptacles
- 20 A
- Color
- White
- Mounting Type - Plugs and Receptacles
- Flush
- Wiring Method
- Side
- Receptacle Type
- Decorator Duplex
- Primary Resistance Properties
- Tamper Resistant - Tamper Resistant - 20 A
- Additional Electrical Protections
- GFCI & Surge Protection
- Features
- Built-In Night Light
- Contact Material
- Brass
- Includes
- Strap Material
- Wire Connection Types
- Screw Terminals
- Mount Type
- Flush
- Additional Electrical Protection
- GFCI, Surge Protection
- Surge Protection
- Yes
- Key Resistance Properties
- Tamper Resistant
- Grade
- Federal Specification
- Voltage Rating
- 125V AC
- Minimum Operating Temperature
- -31 Degrees F
- Resistance Properties
- Tamper Resistant
- Number of Poles & Wires
- 2 Pole / 3 Wire
- Wire Connection Type
- Screw Terminals
- Maximum Operating Temperature
- 150.8 Degrees F
- Visual Indicator Lights
- Power Connected
- Includes Mounting Hardware
- Yes
- Self Testing
- Yes
- Horsepower Rating
- 1 hp
- Market
- Commercial, Residential
- Line Contacts
- Brass Triple-Wipe .031 Thick
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Operating Temperature
- -35C to +66C
- NEMA
- 5-20R
- UL 943
- File E48380
- Fed Spec WC-596
- Yes
- Standards and Certifications
- UL/CSA, NEMA WD6, NEMA WD1
- Temperature Rise
- Max 30C after 100 cycles OL at 150 percent rated current
- Trip Level
- Class A, 5mA plus or minus 1mA
- Grounding Screw
- Plated Steel
- Short Circuit Current Rating
- 10KA
- Yoke
- Zinc-Plated Steel
- Torque Range
- 14-18 in.-lbs
- Wire
- 3
- CSA-C22.2 No. 144.1-06
- File LR-57811
- ANSI
- C-73
- UL498
- Yes
- Amperage
- 20 A
- Terminal Accom.
- 14-10 AWG
- CSA C22.2 No. 42
- Yes
- Clamps
- Brass
- Face Material
- Thermoplastic
- Strap Material
- Galvanized Steel
- Pole
- 2
- Termination
- Back & Side 20A Feed-Thru
- Body Material
- Thermoplastic
- At Rated Voltage
- 1 HP
- Dielectric Voltage
- Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Terminal Screws
- Plated Steel
- Feature
- Self-Test
- Shrouded
- No
- Flange Type
- Non-Flanged
- AFCI
- No
- IP Rating
- Not Rated
- Status Indicator Lights
- Power Connected
- NEMA Enclosure Rating
- Not Rated
- Number of Wall Plates Included
- 0
- Number of Gangs
- 1
