  11. H.G. Duplex Afci Recept, White, 20 Amp
This item is Discontinued.

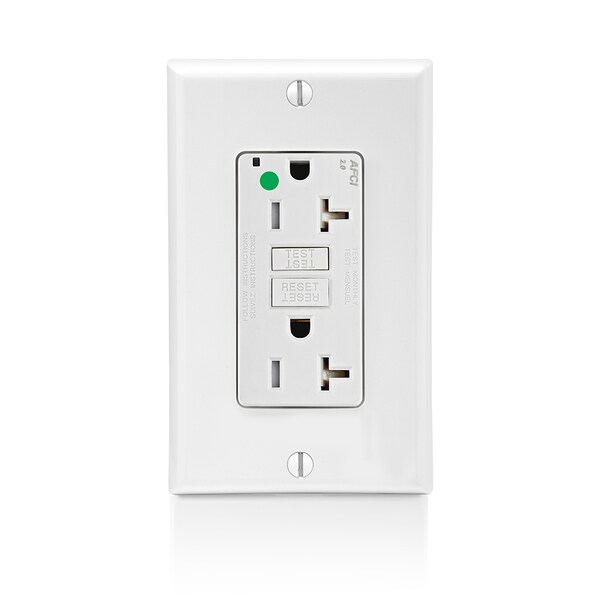

Leviton H.G. Duplex Afci Recept, White, 20 Amp AFTR2-HGW

H.G. Duplex Afci Recept, White, 20 Amp (Discontinued)

  • Mfr # AFTR2-HGW
  • Zoro # G4464565
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AFTR2-HGW
Zoro #
G4464565
UPC #
78477692226
Country of Origin
China

Dimensions

Height
6.2500 in
Length
9.2500 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Isolated Ground
Housing Color
White
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-1 & WD-6 NOM 057, UL 498 and 1699A, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Application
Hospital
Wiring Method
Back, Side
Grounding Screw
Plated Steel
Wire
3
Pole
2
Terminal Clamp
Plated Steel
Face Material
PBT
Terminal Accom.
14-10 AWG solid or stranded
At Rated Voltage
1 HP
Termination
Back or Side Wire
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Terminal Screws
Plated Steel
ANSI
C-73
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Applicable Standards
UL 498 and 1699A, CSA C22.2 No. 42 and TIL No. M-02A, FedSpec W-C 596
Body Material
Polycarbonate
Flammability
Rated V-0 per UL 94
Ground Clips
Brass
Certification/Listing
UL, CSA, NOM-ANCE
Feature
Wallplate Included|Tamper-Resistant|Power Indication
Device Type
Duplex Receptacle Outlet
Operating Temperature
-35C to +66C
Function
AFCI
Line Contacts
Brass Double Wipe .031 Thick
Grade
Heavy-Duty Hospital Grade
Screw Terminal Torque
14-18 in-lbs
Dielectric Voltage
Withstands 2000V per UL498
Strap Material
Zinc-Plated Steel
Standard
UL 498 and 1699A

Description

20 Amp. 125 Volt. 20 Amp Feed-Through. Hospital Grade. Tamper-Resistant. AFCI Receptacle. Monochromatic. Back and side wired. Nylon wallplate included. Screws and self grounding clip included – White
