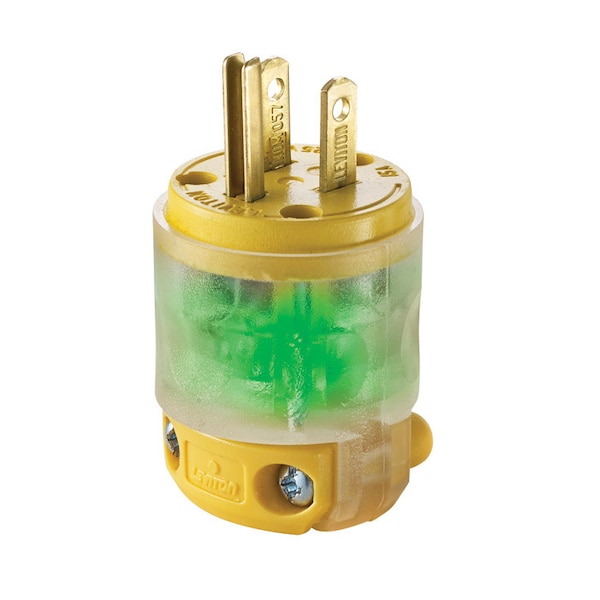

Leviton Commercial and Residential Vinyl Straight Blade Plug 5-15P 18-12 AWG 2 Pole 3 Wire
Mfr # 515PV-LIT
Zoro # G801293493
product price: $12.59
/eaKey Features
Features
Power Indication
Voltage
125 VAC
Valve Body Material
PVC
Amps
15 A
Color
Yellow/Transparent
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
515PV-LIT
Zoro #
G801293493
UPC #
78477674857
Country of Origin
Mexico
Details
Features
Power Indication
Voltage
125 VAC
Valve Body Material
PVC
Amps
15 A
Color
Yellow/Transparent
Operating Temperature
-40°C to 60°C
Wire
3
Blades/Contacts
Brass
Cord Range
.245 - .655
Flammability
Rated V-2 per UL 94
Assembly Screws
Steel, Zinc Plated
Grounding
Grounding
Pole
2
Dielectric Voltage
Withstands 2000V per UL498
Terminal Accom.
18-12 AWG
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
NEMA
WD-6
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Description
Leviton offers a large selection of 15, 20, 30 and 50 amp Straight Blade Plugs and Connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant and they're ideal for indoor and outdoor use. the EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.
- • 15A-125V
- • Vinyl Plug
- • 2-Pole, 3-Wire
- • Neon light indicates power is on
- •
