  6. Locking Connector, 20 A, 125/250V AC, 3 Pole, Screw Terminals, Black, White

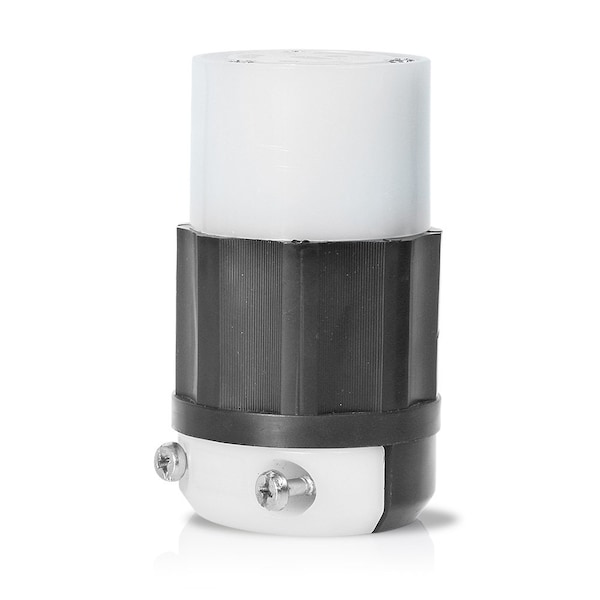

Leviton Locking Connector, 20 A, 125/250V AC, 3 Pole, Screw Terminals, Black, White 7314-C - main

Locking Connector, 20 A, 125/250V AC, 3 Pole, Screw Terminals, Black, White

  • Mfr # 7314-C

  • Zoro # G104255990

product price:  $29.39
/ea

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
125/250V AC
Number of Poles
3
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7314-C
Zoro #
G104255990
UPC #
07847703087
Country of Origin
Mexico

Dimensions

Outside Diameter
2.22 in
For Maximum Cable Diameter
0.72 in
Minimum Wire Size
14 AWG
Overall Length
3.78 in
For Minimum Cable Diameter
0.385 in
Face Diameter
1.97 in
Maximum Wire Size
10 AWG

Details

Item
Locking Connector
NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
125/250V AC
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13393, UL 94, UL Federal Specification WC-596 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Grade
Federal Specification
Material
Impact Modified Nylon
IP Rating
Not Rated
Body Material
Impact Modified Nylon
Maximum Operating Temperature
140 Degrees F
Midget Locking
No
Housing Material
Nylon
For Environment
Dry
Contact Material
Brass
NEMA Enclosure Rating
Not Rated
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Insulation Material
Nylon
Polarized
Yes
UL 94 Flammability Rating
HB
Flammability
Rated HB or better UL94
Blade Material
Solid Brass
Operating Temp.
-40A deg C to 60A deg C
Number of Blades
3
NEMA Plug Configuration
Non-NEMA
NEMA Rating
Not Rated

Description

Locking Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, IP Rating Not Rated, NEMA Receptacle Configuration Non-NEMA, Number of Poles 3, Number of Wires 3, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, Shrouded No, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Contact Material Brass, Face Diameter 1.97 in
