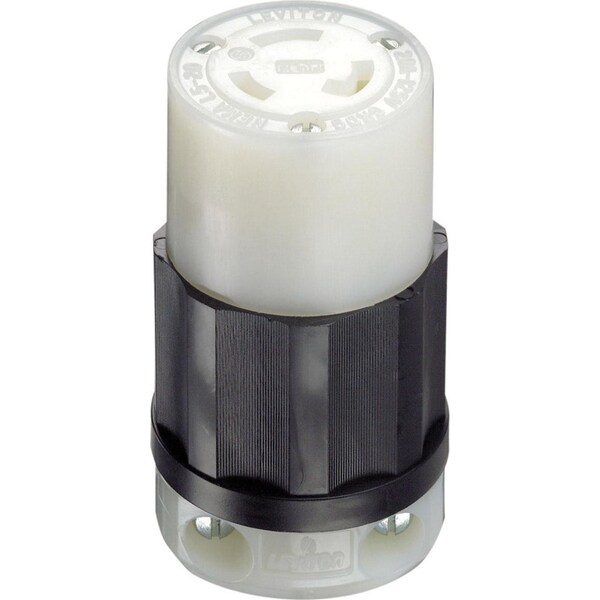

Locking Connector, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White
- Mfr # 02313-000
- Zoro # G1935872
product price:
$
21.35
/ea
Key Features
NEMA Receptacle Configuration
L5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 02313-000
- Zoro #
- G1935872
- UPC #
- 78477419076
- Country of Origin
- United States
Dimensions
- For Maximum Cable Diameter
- 0.72 in
- For Minimum Cable Diameter
- 0.385 in
Details
- Item
- Locking Connector
- NEMA Receptacle Configuration
- L5-20R
- Current Rating
- 20 A
- Voltage Rating
- 125V AC
- Phase
- Single
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Wiring Style
- Standard
- Connection Orientation
- Straight
- Shrouded
- No
- Grounding
- Grounded
- Housing Color
- Black, White
- Cap Type
- No Cap
- Standards
- ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13393, UL 94, UL Federal Specification WC-596 File E13393
- Resistance Properties
- Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
- IP Rating
- Not Rated
- Cover Type
- No Cover
Description
Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets and outlets offer superior performance, long lasting reliability.
- • One piece contacts reduce friction and overheating
- • Unique cord clamp accepts wide range of cord sizes (.245 inch -.700 inch)
- • Rugged nylon construction resists impact, sunlight, chemicals and rough use
- • Ideal for extension cords and generators
- •
