  11. Locking Plug, L17-30P, 30 A, 600V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

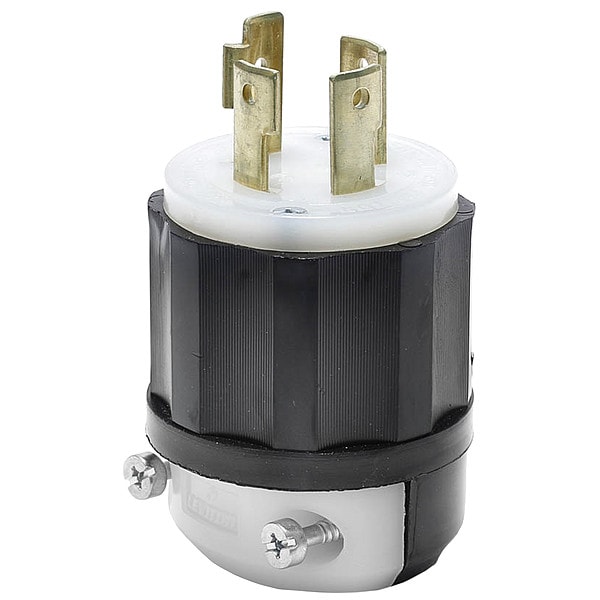

Leviton Locking Plug, L17-30P, 30 A, 600V AC, Three Phase, 3 Pole, Screw Terminals, Black, White 2741 - main

Locking Plug, L17-30P, 30 A, 600V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # 2741

  • Zoro # G404255980

product price: $31.79
/ea

Key Features

NEMA Plug Configuration
L17-30P
Current Rating
30 A
Phase
Three
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2741
Zoro #
G404255980
UPC #
07847780839
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.595 in
Cord Size
0.375 in to 0.875 in
Minimum Wire Size
14 AWG
Maximum Wire Size
8 AWG
Face Diameter
1.97 in

Details

Item
Locking Plug
NEMA Plug Configuration
L17-30P
Current Rating
30 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498 File E13393, UL Federal Specification WC-596 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Grade
Industrial
Special Features
Chemical Resistant, Long Lasting Reliability, Resists Impact, Rough Use, Sunlight, Unique Cord Clamp
Material
Impact Modified Nylon
Body Material
Impact Modified Nylon
Minimum Operating Temperature
-40 Degrees C
Blade Material
Brass
For Environment
Dry
Market
Industrial
Housing Material
Nylon
Polarized
Yes
Maximum Operating Temperature
140 Degrees F
Midget Locking
No
Flammability
Rated HB or better UL94

Description

Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration L17-30P, Number of Blades 4, Number of Poles 3, Phase Three, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, Voltage Rating 600V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.97 in, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.595 in
