Shop LEVITON

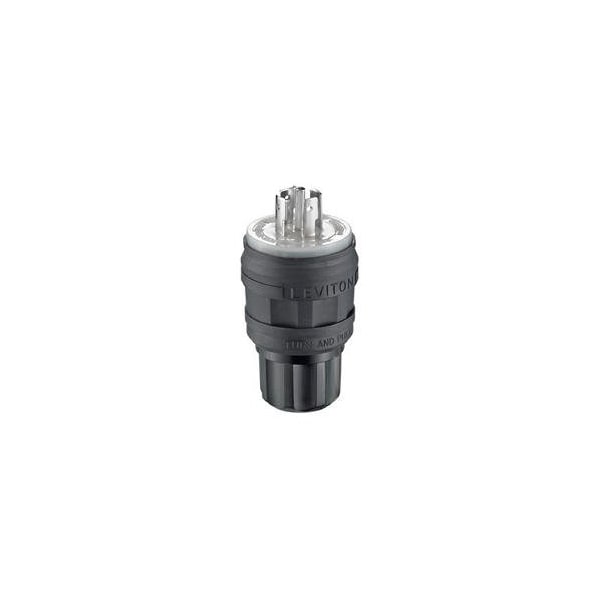

Locking Plug, L21-20P, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black

  • Mfr # 26W81-B

  • Zoro # G216091653

product price:  $93.99
/ea

Key Features

NEMA Plug Configuration
L21-20P
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
26W81-B
Zoro #
G216091653
UPC #
078477014707
Country of Origin
Mexico

Dimensions

Length
4.52 in
Body Length
3.62 in
Outside Diameter
2.31 in
Face Diameter
2.31 in
For Minimum Cable Diameter
0.375 in
For Maximum Cable Diameter
0.875 in
Overall Length
4.52 in

Details

Item
Locking Plug
NEMA Plug Configuration
L21-20P
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black
Standards
RoHS
Resistance Properties
Watertight
Flange Material
EPTR Rubber
Environment
Wet
Blade Material
Nickel-Plated Brass
IP Rating
IP66, IP67, IP69K
Housing Material
Nylon
Operating Temp.
-40 to 60 Degrees C
For Environment
Washdown
Market
Industrial
Maximum Operating Temperature
60 Degrees C
Minimum Operating Temperature
-40 Degrees C
Midget Locking
No
Series
Perma-Tite
Number of Blades
5
Horsepower Rating
2 hp
Shrouded
No
UL 94 Flammability Rating
V-2
Grade
General Use
Features
Industry Exclusive Limited Lifetime Warranty
Power and Ground Indicating Light
No

Description

Locking Plug
