Shop LEVITON

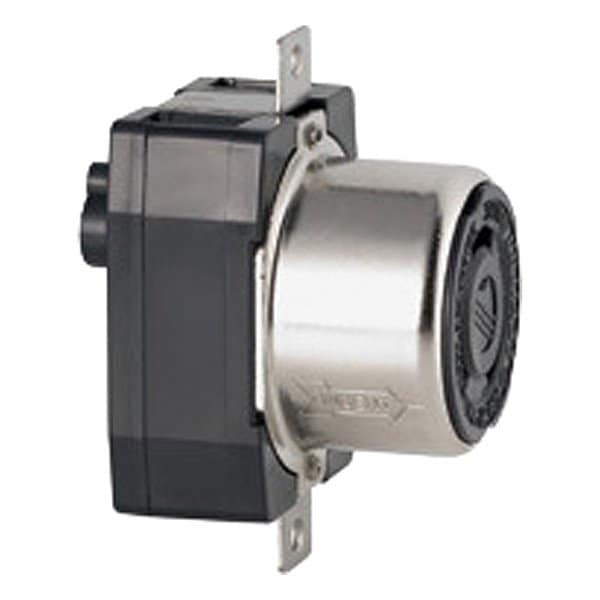

Locking Receptacle, 50 A, 125V AC, Black

  • Mfr # 6370CR

  • Zoro # G122586625

product price:  $213.99
/ea
Free Shipping & Returns

Key Features

Cover Type
No Cover
Face Plate Width
2.13 in
Flange Type
Non-Flanged
NEMA Enclosure Rating
Not Rated
Current Rating
50 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6370CR
Zoro #
G122586625
UPC #
78477804568
Country of Origin
Mexico

Dimensions

Face Plate Width
2.13 in
Maximum Wire Size
6 AWG
Face Plate Height
2.69 in
Overall Depth
2.55 in
Minimum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.75 in

Details

Cover Type
No Cover
Flange Type
Non-Flanged
NEMA Enclosure Rating
Not Rated
Current Rating
50 A
Contact Material
Brass
Housing Color
Black
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Number of Outlets
1
For Environment
Industrial
UL 94 Flammability Rating
V-0
Wire Connection Type
Screw Terminals
Grounding
Grounded
Hub Type
Dead End
Housing Material
Nylon
Number of Gangs
1
Shrouded
Yes
Features
Extended Life Reduces Equipment Downtime, Premium Materials for Rugged Construction, Reduced Downtime Reduces Labor Costs and Increases Profits, Rugged Construction Extends Device Life
Item
Locking Receptacle
Number of Poles
2
Midget Locking
No
Voltage Rating
125V AC
Maximum Operating Temperature
167 Degrees F
Resistance Properties
Corrosion Resistant
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
Number of Wires
3
Horsepower Rating
1 hp
Series
Insulgrip
NEMA Receptacle Configuration
Non-NEMA
Phase
Single
Connection Orientation
Straight
IP Rating
Not Rated

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 50 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Black, Housing Material Nylon, Mount Type Not Applicable, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration Non-NEMA, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Shrouded Yes, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, Contact Material Brass, Cover Type No Cover
