Shop LEVITON

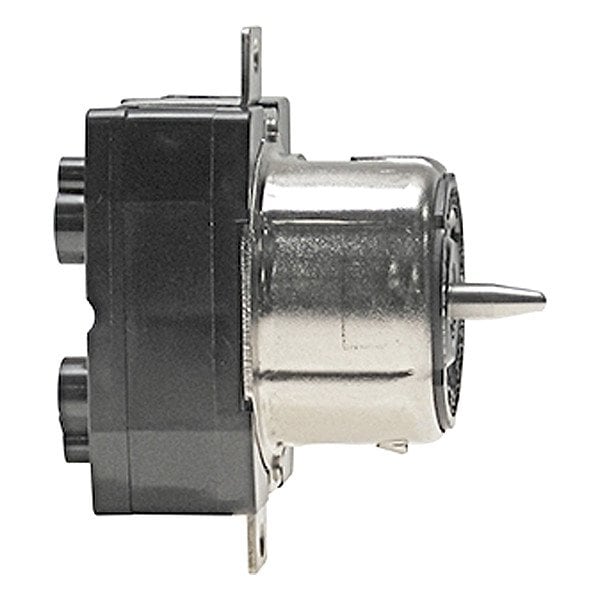

Locking Receptacle, 50 A, 480V AC, Black

  • Mfr # CS8169

  • Zoro # G222586525

product price:  $155.99
/ea
Free Shipping & Returns

Key Features

Face Plate Width
2.13 in
Horsepower Rating
75 hp
For Environment
Industrial
Face Plate Height
2.69 in
Minimum Wire Size
10 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CS8169
Zoro #
G222586525
UPC #
78477326367
Country of Origin
Mexico

Dimensions

Face Plate Width
2.13 in
Face Plate Height
2.69 in
Minimum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.75 in
Overall Depth
3.18 in
Maximum Wire Size
6 AWG

Details

Horsepower Rating
75 hp
For Environment
Industrial
Connection Orientation
Straight
Housing Material
Nylon
Grounding
Grounded
Number of Wires
4
Series
Valise
Number of Poles
3
Phase
Single
Current Rating
50 A
Mount Type
Flush
IP Rating
Not Rated
Housing Color
Black
Number of Gangs
1
Hub Type
Dead End
Minimum Operating Temperature
-40 Degrees F
Midget Locking
No
Flange Type
Non-Flanged
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
NEMA Enclosure Rating
Not Rated
Features
Extended Life Reduces Equipment Downtime, Premium Materials for Rugged Construction, Reduced Downtime Reduces Labor Costs and Increases Profits, Rugged Construction Extends Device Life
Resistance Properties
Corrosion Resistant
Wire Connection Type
Screw Terminals
Cover Type
No Cover
Number of Outlets
1
Contact Material
Brass
UL 94 Flammability Rating
V-0
Voltage Rating
480V AC
Maximum Operating Temperature
167 Degrees F
NEMA Receptacle Configuration
Non-NEMA
Market
Industrial
Item
Locking Receptacle
Shrouded
Yes

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 50 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration Non-NEMA, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Single, Shrouded Yes, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, Contact Material Brass, Cover Type No Cover
