Shop LEVITON

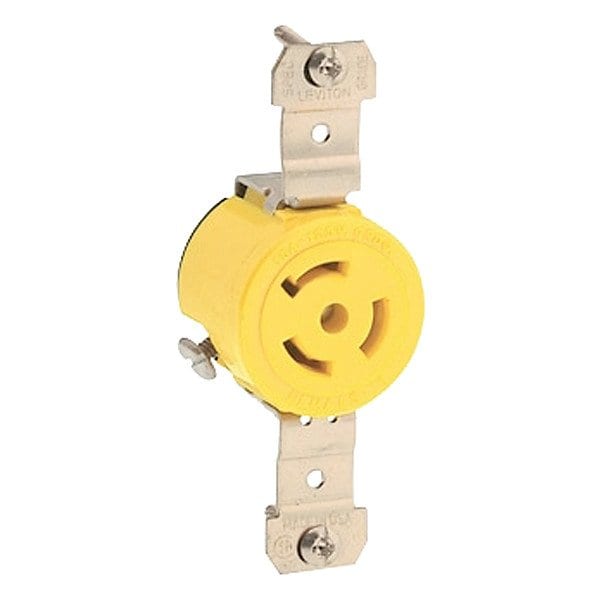

LockingReceptacle, 15A, 1-1/2hp, 250VAC, Ylw

  • Mfr # 45CM-60

  • Zoro # G922729406

product price:  $47.65
/ea

Key Features

Number of Outlets
1
Features
Connector "Hood" Closure Cap Seals Device When Not in Use, Interlocking "Tongue and Groove" Construction Seals Out Water, Moisture, and Dirt When Plugs are Mated with Connectors, Multi-Point Sealing System Utilizes Nut, Strain Relief Washer, and Rubber Bushing to Form a Watertight Cord Grip Seal, Non-Magnetic Stainless Steel Fast-Threading Assembly Screws Won't Interfere with Sensitive Equipment, Plug and Connector Husk is Molded to a Bondable Nylon Body, Providing a Device that Withstands Physical Abuse
Series
Insulgrip
Midget Locking
No
Market
Industrial
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
45CM-60
Zoro #
G922729406
UPC #
-
Country of Origin
Mexico

Dimensions

Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Face Plate Height
4.06 in
Mount Hole Center-to-Center Height
3.75 in

Details

Number of Outlets
1
Features
Connector "Hood" Closure Cap Seals Device When Not in Use, Interlocking "Tongue and Groove" Construction Seals Out Water, Moisture, and Dirt When Plugs are Mated with Connectors, Multi-Point Sealing System Utilizes Nut, Strain Relief Washer, and Rubber Bushing to Form a Watertight Cord Grip Seal, Non-Magnetic Stainless Steel Fast-Threading Assembly Screws Won't Interfere with Sensitive Equipment, Plug and Connector Husk is Molded to a Bondable Nylon Body, Providing a Device that Withstands Physical Abuse
Series
Insulgrip
Midget Locking
No
Market
Industrial
Wire Connection Type
Screw Terminals
Shrouded
Yes
Flange Type
Non-Flanged
Number of Poles
2
Standards
ANSI C-73, CSA C22.2 No. 42, CSA File No. LR-406, NEMA WD-6, NOM 057, UL 498 File No. E13399, UL Fed. Spec. W-C-596, UL File No. E13399
Hub Type
Dead End
Horsepower Rating
1/2 hp
NEMA Receptacle Configuration
L6-15R
Item
Locking Receptacle
For Environment
Corrosive
Number of Wires
3
Grounding
Grounded
Housing Color
Yellow
Resistance Properties
Moisture Resistant
Minimum Operating Temperature
-40 Degrees C
UL 94 Flammability Rating
V-0
Current Rating
15 A
Number of Gangs
1
Maximum Operating Temperature
60 Degrees C
IP Rating
Not Rated
Voltage Rating
250V AC
Housing Material
Nylon
Phase
Single
Mount Type
Flush
Contact Material
Nickel-Plated Brass
Cover Type
No Cover
Connection Orientation
Straight
NEMA Enclosure Rating
Not Rated

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 15 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Yellow, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration L6-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Shrouded Yes, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, Contact Material Nickel-Plated Brass, Cover Type No Cover
